C-Beam™ Gantry Plate - Double Wide
This C-Beam Double Wide Gantry Plate is designed to provide a stronger, more stable platform for your Builds.

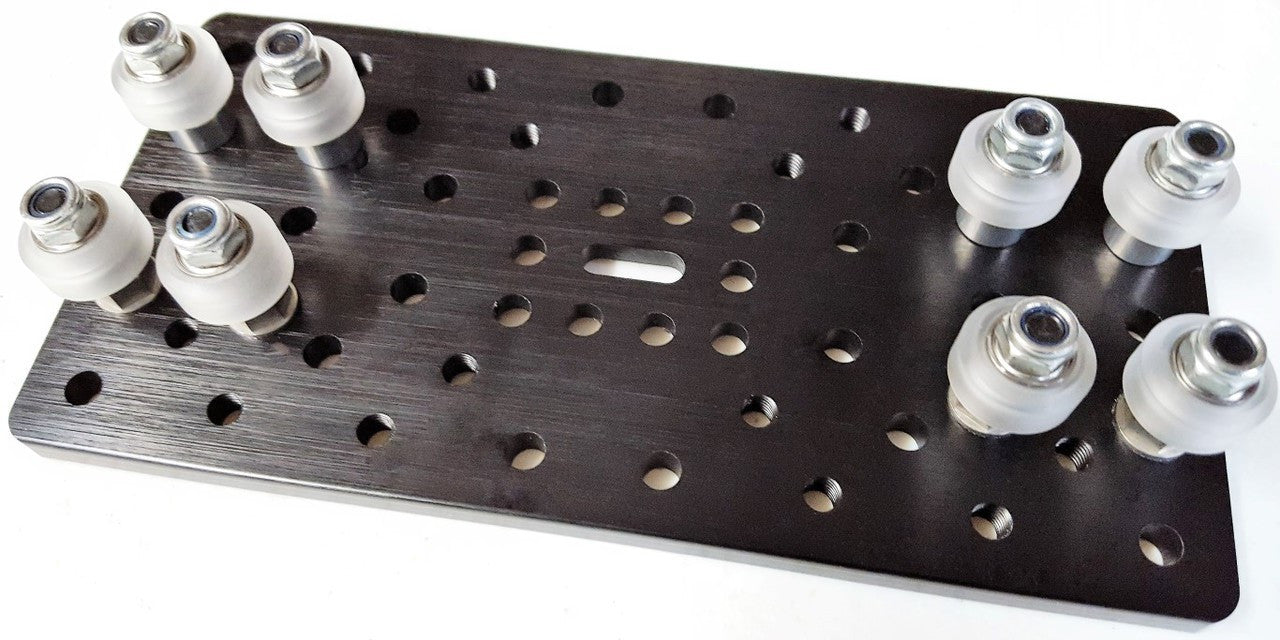

The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications.
Designed specifically to provide a much stronger Z-axis system but is modular enough to be used on any axis.

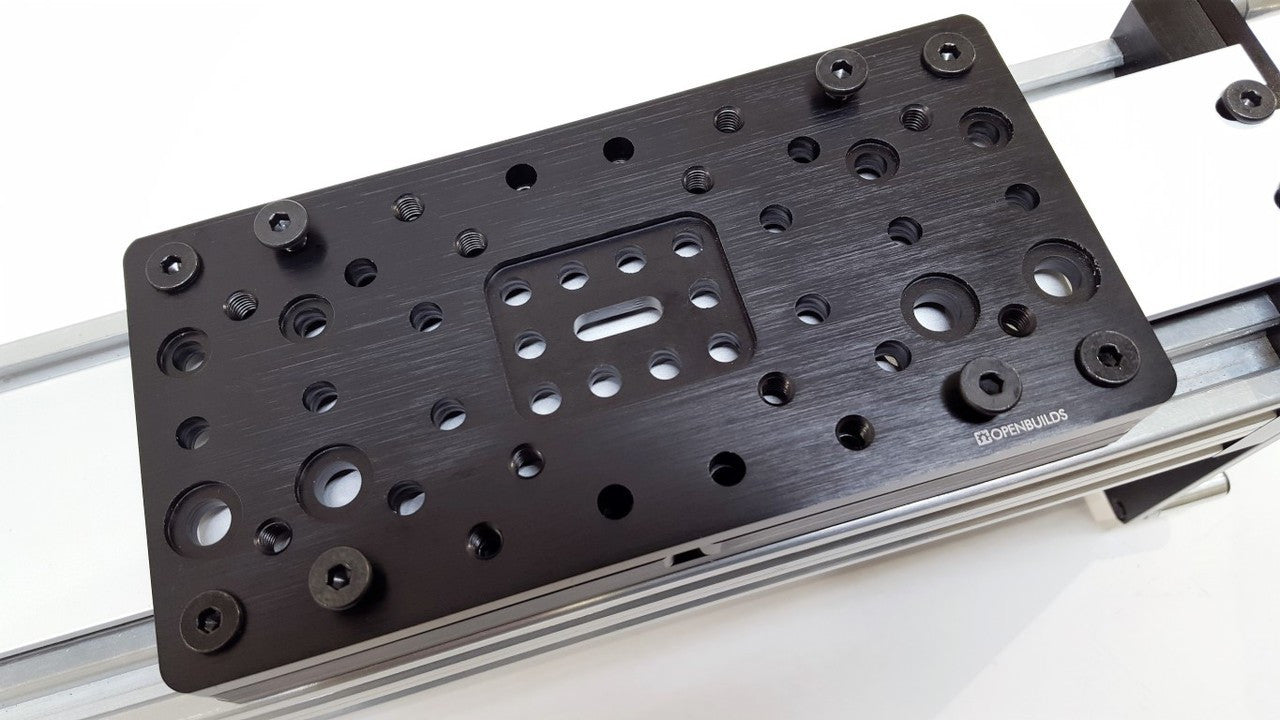

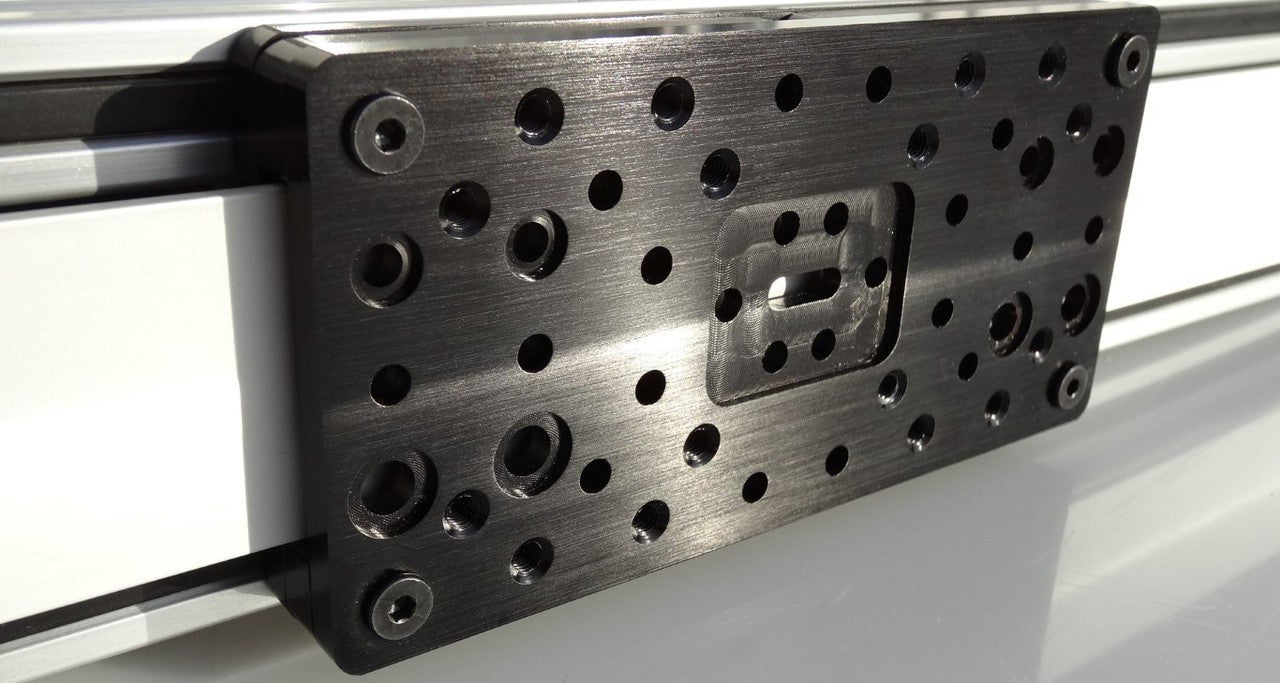

Flush, clean finish with wheels that ride on the internal "V" tracks of C-Beam.

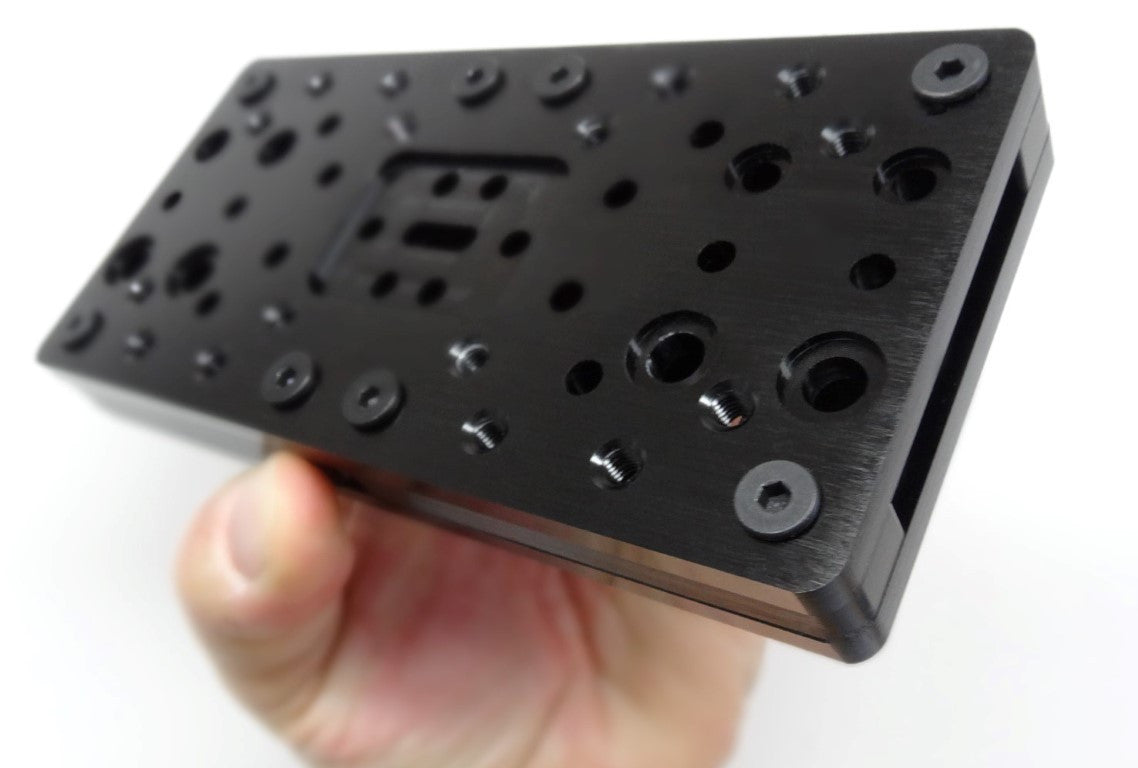

Can be used with all available C-Beam accessories including the C-Beam Shield.
The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications.
Designed specifically to provide a much stronger Z-axis system but is modular enough to be used on any axis.
Flush, clean finish with wheels that ride on the internal "V" tracks of C-Beam.
Can be used with all available C-Beam accessories including the C-Beam Shield.

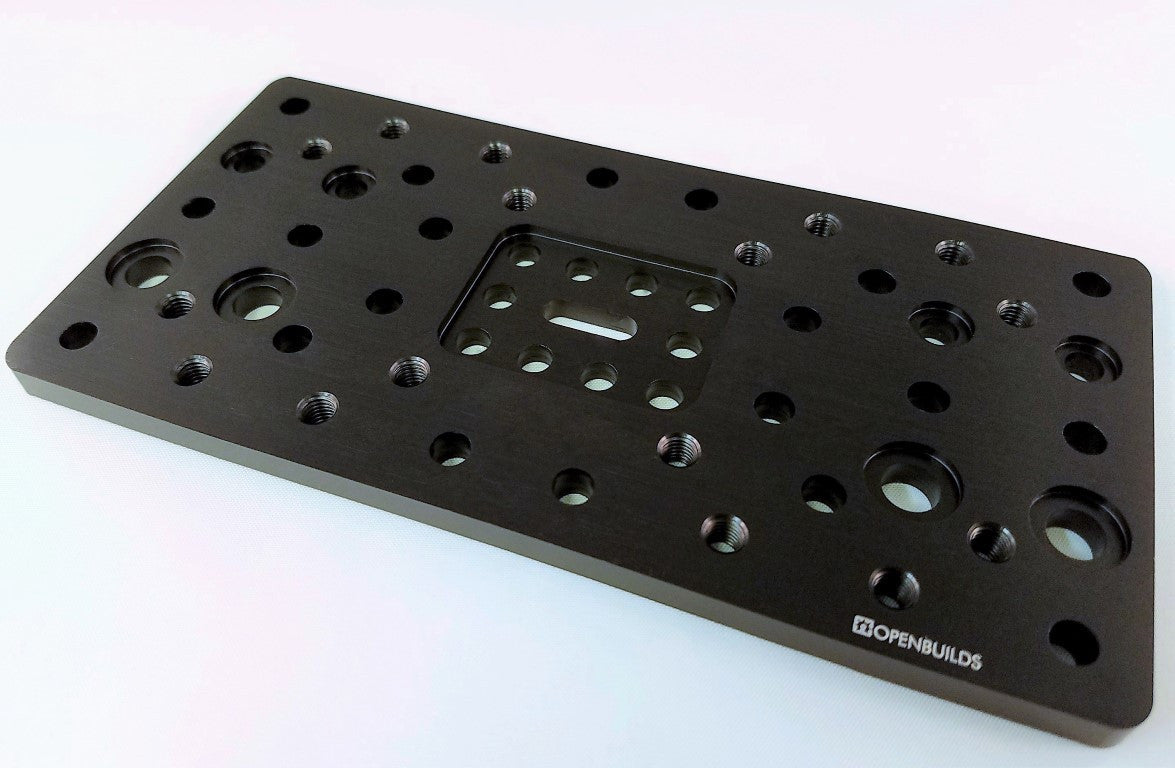

- A strong 6mm thick aluminum 6061- T5 plate
- 155mm Long x 77.5mm Wide
- Shiny black anodized for a finished look

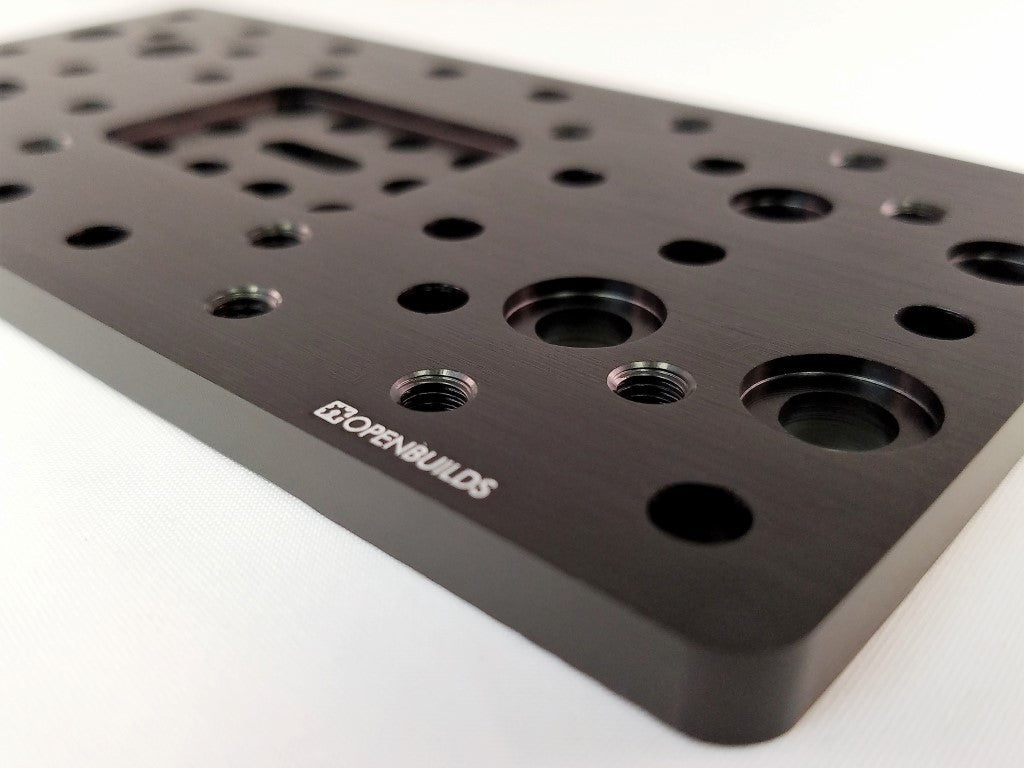

- Recessed screw pockets ensure flush mounts
- Includes pre-tapped mounting holes for C-Beam Riser Plates
- Adjustable center hole mount allows for belt actuator configurations
- Can use up to 8 Mini V Wheels to ensure a strong lock into the V-Slot™ v groove
