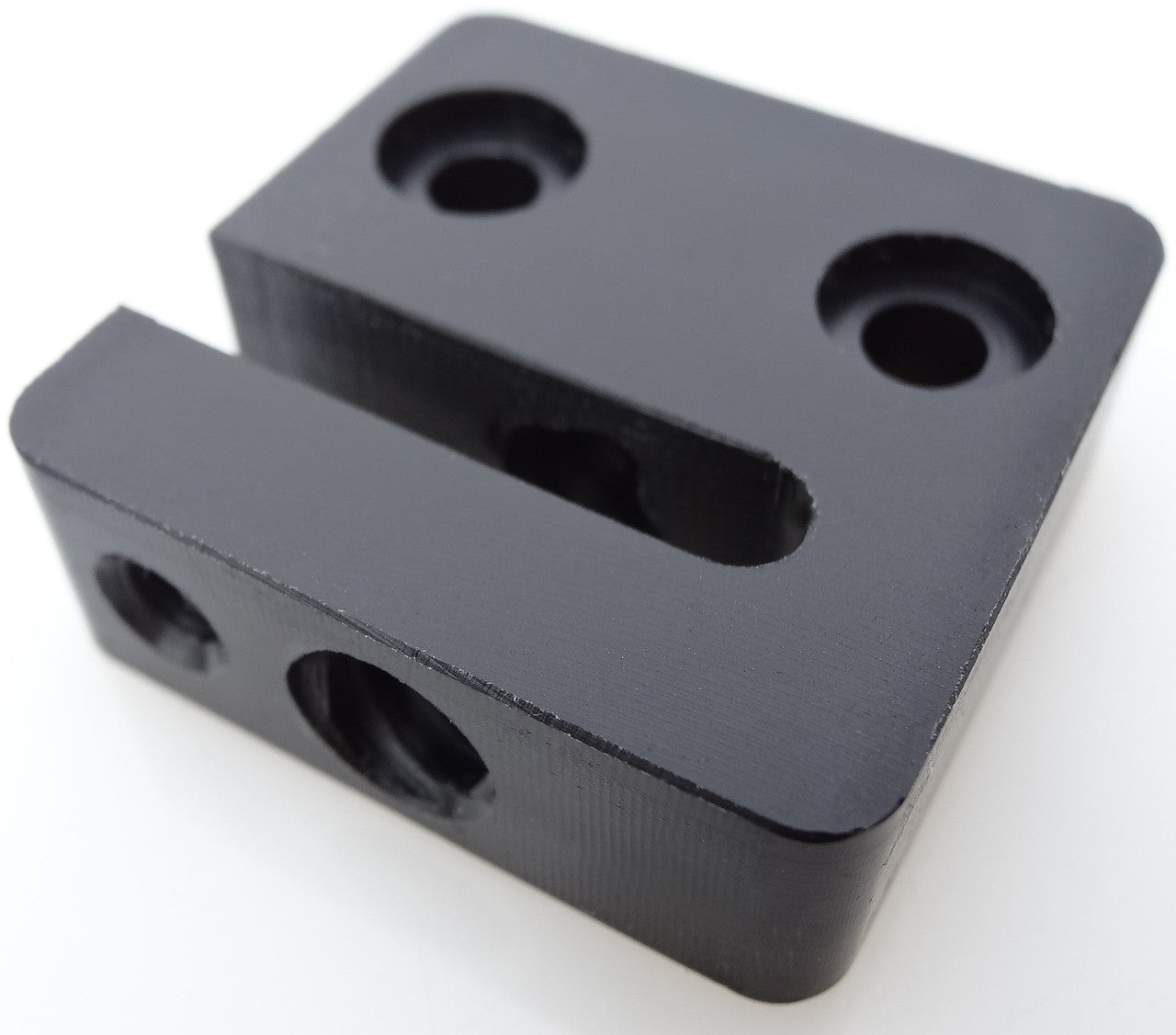

Anti-Backlash Nut Block for 8mm Metric Acme Lead Screw

  • $ 9.99
    Unit price per
Shipping calculated at checkout.

This high quality 8mm Acme Anti-Backlash Nut Block is a great choice for many projects requiring lead screw linear motion.

The pitch and diameter are a perfect combination of high torque and speed. This screw fits the bill for most machine designs and has quickly become a standard on OpenBuilds builders.

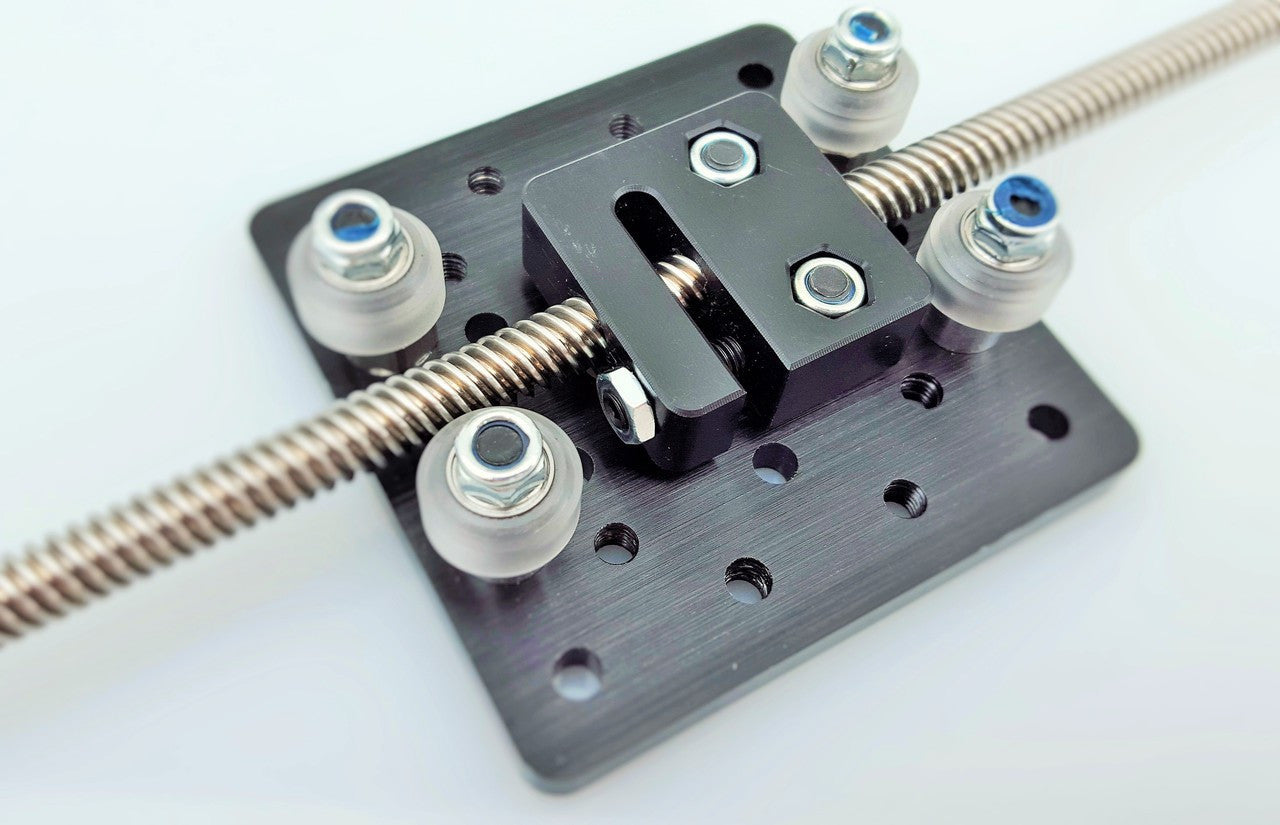

It serves more than one purpose in that it can be mounted to the bottom of a 3mm/1/8" plate utilizing M5 nylon insert nuts and 15mm M5 screws or can also be mounted directly to V-Slot utilizing two channels with 15mm M5 low profile screws and two tee nuts. These mounting choices allow for a host of modular machine applications. You can mount this block along any length of V-Slot to create your linear motion.

To use the the Anti-Backlash Nut Block - Turn the set screw just enough to take out any play in the Nut Block. Then screw the lock nut on the top of the set screw to lock the set screw in place.

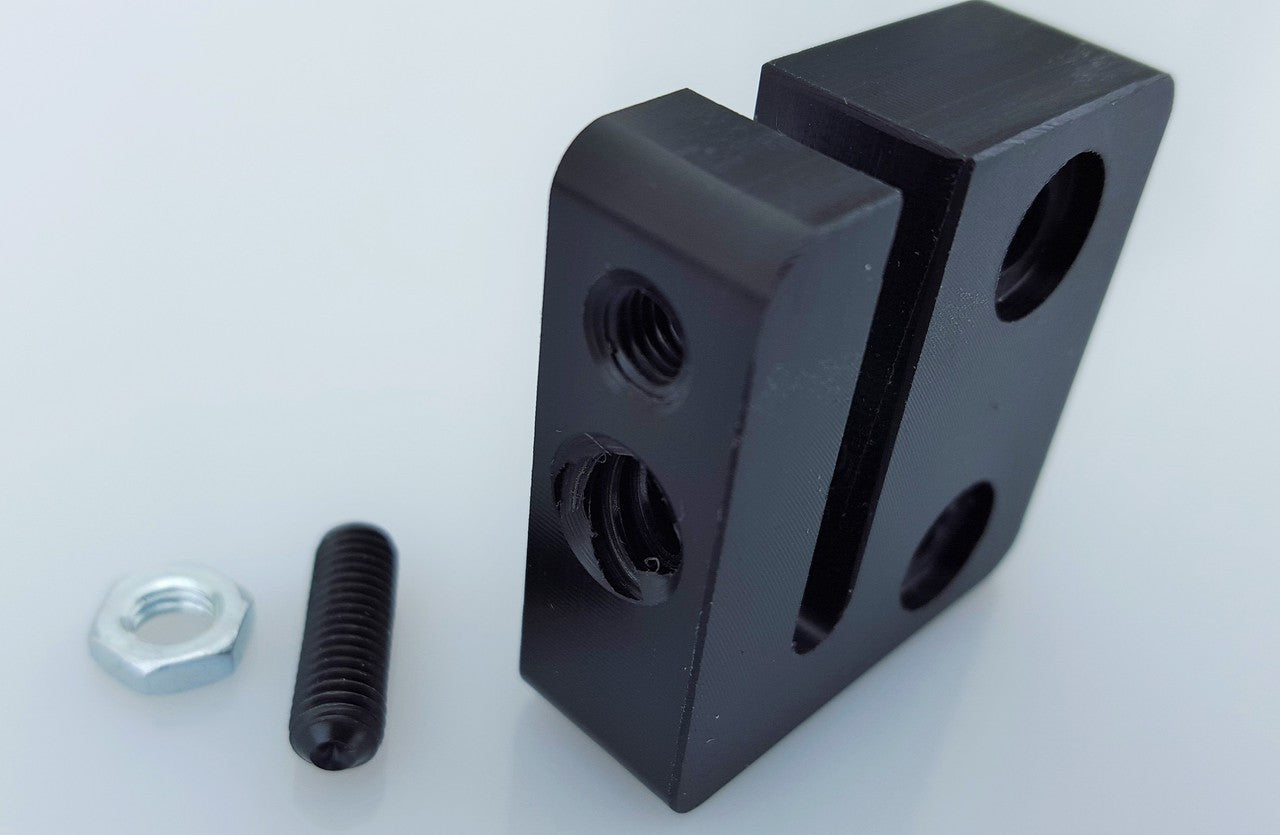

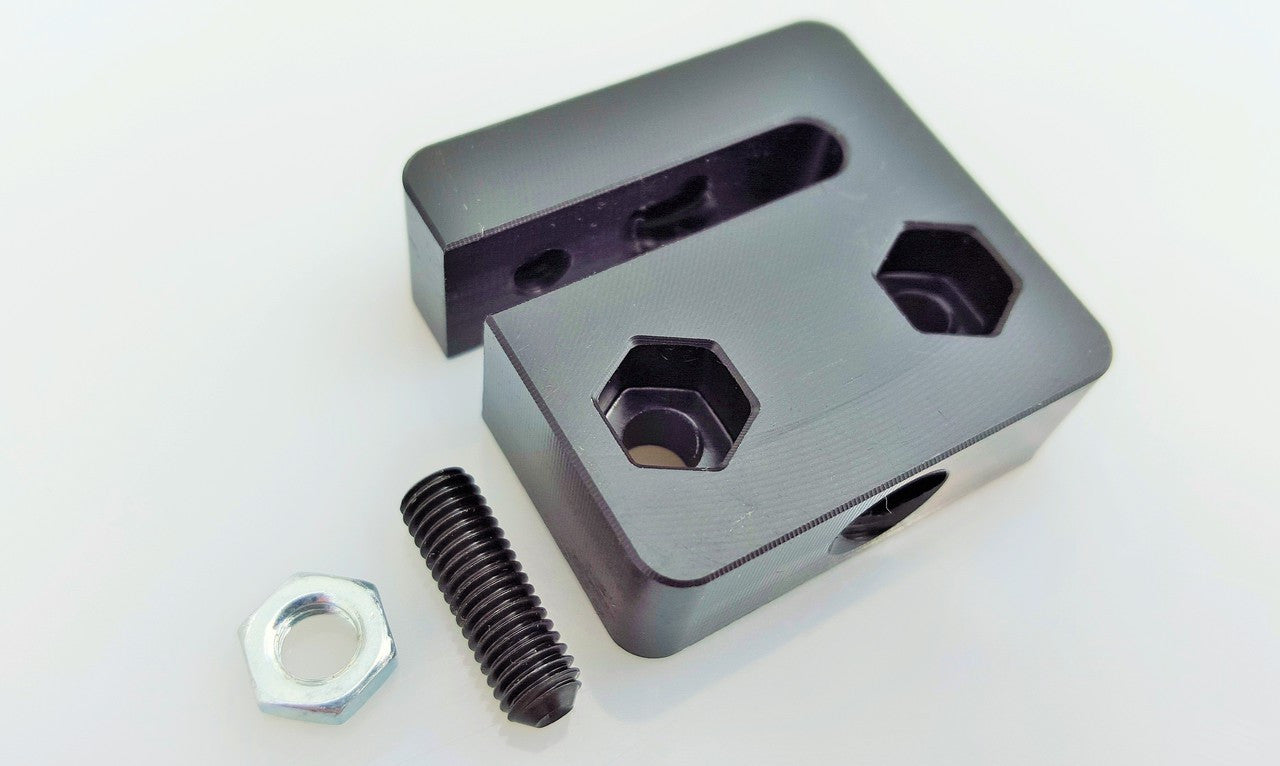

Package includes: (1) Set screw (1) Low profile locking nut (1) Anti-backlash Nut Block

Tr8*8(p2) Metric Acme Tap
Pitch is 2mm
starts is 4
Lead is 8mm
Mounting hole spacing 20mm
Use in conjuntion with the 8mm Metric Lead Screw

Be sure to check out all the pictures for connection examples.
