MK8 Plated Wear Resistant Nozzle (CR10 / Ender / Tornado / MakerBot) -1.75mm Filament

  • $ 14.99
    Unit price per
Shipping calculated at checkout.

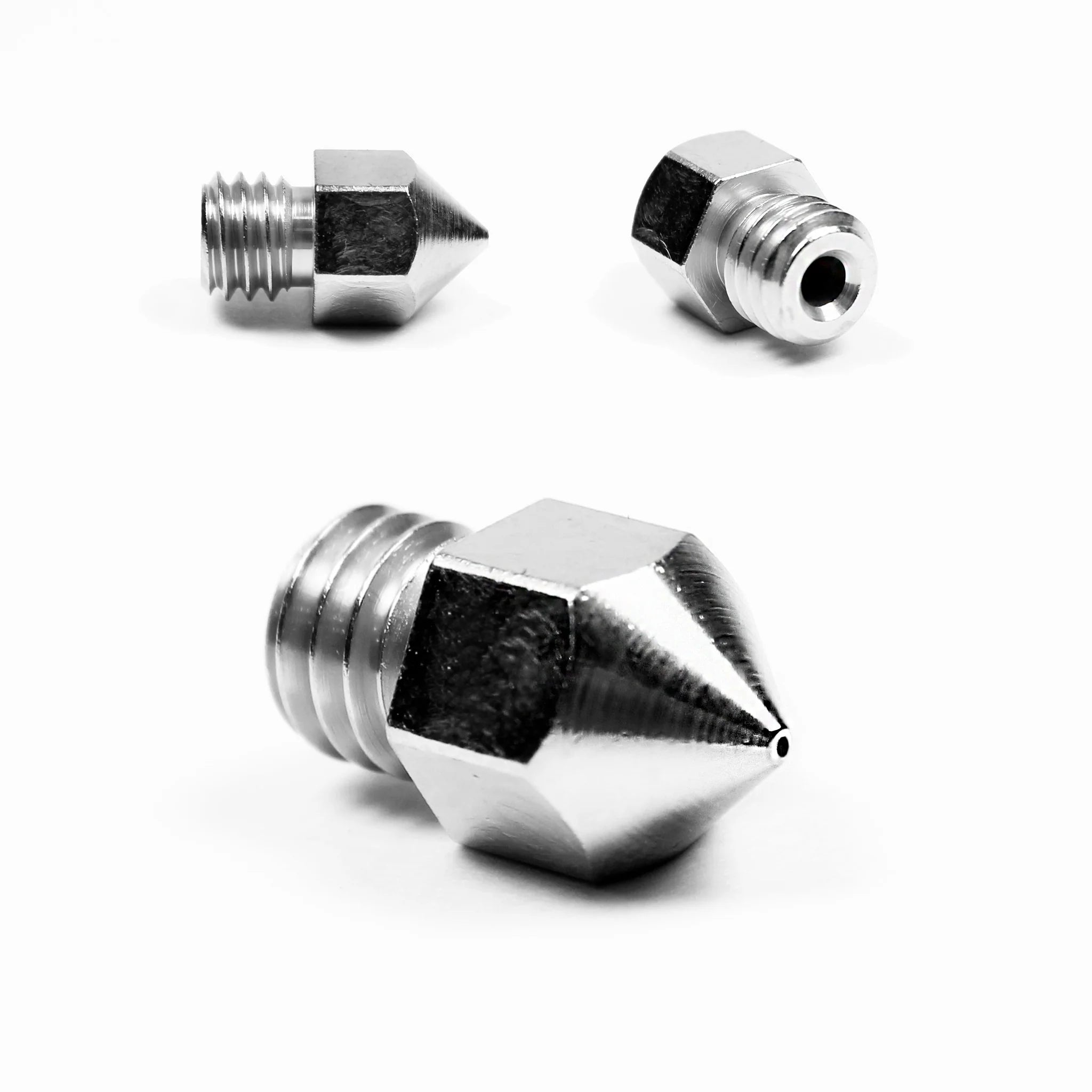

Reduce 3D Printer nozzle wear with a Micro Swiss Plated Brass wear resistant Nozzle

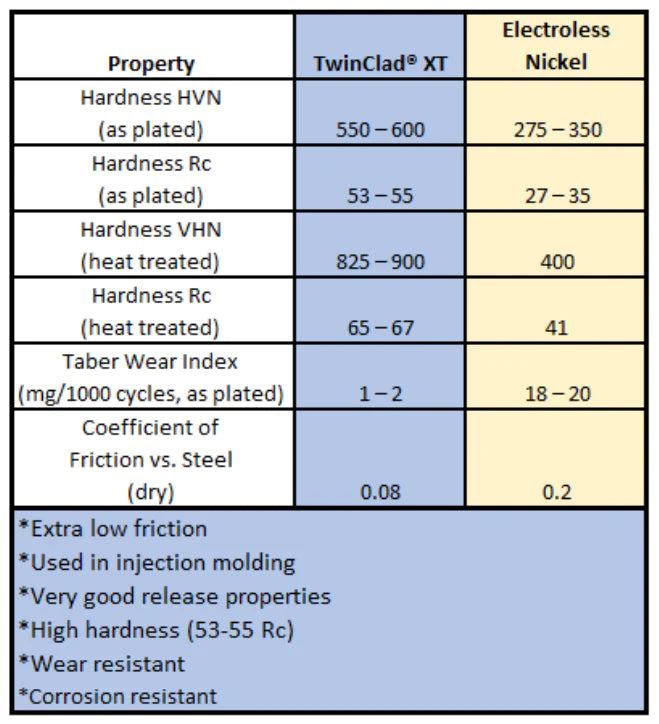

These MK8 style nozzles are made from a 360 brass base material and plated with TwinClad XT coating. Brass provides excellent thermal conductivity while the very hard and abrasion resistant TwinClad XT coating protects the nozzle against wear. The TwinClad XT coating also includes non-stick additives and offers one of the lowest coefficients of friction, better than nickel with PTFE co-deposit. If you are working with abrasive Carbon Fiber, Stainless Steel, wood filled or any other metal filled filaments, this will greatly improve the life of your nozzle.

The TwinClad XT coating  will greatly extend the life of these brass nozzles and holds up well to occasional printing with abrasive materials. If you plan on doing extensive printing with very abrasive materials you may want to consider upgrading to the Micro Swiss A2 Tool STEEL wear resistant nozzle (an even more wear resistant steel nozzle) or M2 Hardened High Speed STEEL Nozzle - MK8 (The most wear resistant steel nozzle Micro Swiss makes).

(Note: Many manufacturers of composite 3D printing filaments which contain abrasive materials recommend nozzle orifices 0f 0.5mm or larger to  greatly reduce the likelihood of nozzle clogging. If you are unsure what size is right for you, please check with the filament manufacturer for their recommendation)


  • Thread size:                               M6 x 1.0
  • Thread length:                           5mm
  • Overall length:                           13mm
  • Base Material:                            Brass
  • Plating:                                      TwinClad XT
  • Plating Hardness:                      65-67 HRC
  • Coefficient of friction:                0.08
  • Orifice size available:                 0.2mm, 0.3mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm
  • Made in USA by Micro Swiss



  • Alfawise U20
  • Alfawise U30
  • Anet A8
  • BQ Prusa I3 Hephestos
  • BQ Witbox
  • CraftBot 2
  • CraftBot PLUS
  • Creality Sermoon D1
  • CP-01
  • CR-10
  • CR-10 V2
  • CR-10 V3
  • CR-10 MINI
  • CR-10-S4
  • CR-10-S5
  • CR-10S
  • Ender 2
  • Ender 3
  • Ender 3 V2
  • Ender 3 Pro
  • Ender 3 S1
  • Ender 3 Max
  • Ender 5
  • Ender 5 Plus
  • Ender 5 Pro
  • Ender 6
  • Flsun QQ-S
  • Geeetech A10, A20, A30
  • MakerBot Replicator 1
  • MakerBot Replicator 2
  • MakerBot Replicator 2x
  • MakerBot Replicator 5th Gen
  • MakerBot Replicator Mini
  • MakerBot Replicator z18​
  • Micro Swiss All Metal Hotend for CR-10 (M2583-04)
  • Micro Swiss All Metal Hotend for CR-10s Pro (M2591-04)
  • Sovol SV01
  • Snapmaker 3-in-1 3D Printer
  • Tevo Tornado
  • TronXY X5S
