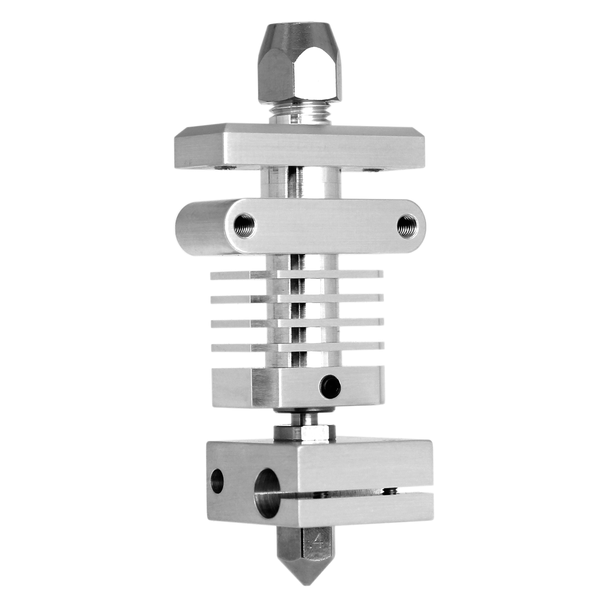

Micro Swiss All Metal Hotend Kit for Creality CR-6 SE
Upgrade your Creality CR-6 SE 3d printer to print High temperature filaments with this All-Metal Hotend kit!
The factory hotend design on the Creality CR-6 SE 3D printers has the PTFE tube located down in the melt zone of the hotend, where it butts up right against the nozzle. This limits the maximum temperature the nozzle can be used at, as PTFE will deform/shrink and break down around 250-260°C releasing hazardous fumes. Upgrading to an "all metal" hotend that does not use PTFE in the melt zone gives users the option to print materials requiring much higher nozzle temperatures like most nylon, polycarbonate, and engineering grade filaments safely and without the jams caused by deformed PTFE liners.
This drop in All Metal Conversion kit requires absolutely zero modification to your printer to install. The uniquely designed cooling block eliminates need for a thermal tube. By not having a separate thermal tube inside the cooling block, it allows for faster heat dissipation.
- Accepts the factory thermistor and heater cartridges
- Thermal heat break made from Grade 5 Titanium Alloy to provide excellent thermal isolation between the heater and the cooling block. Titanium is an extremely strong material and offers almost 3x lower thermal conductivity than stainless steel, creating a more defined melt zone.
- Includes silicone heater block cover to help insulate and protect the heat block from drafts and filament build up.
- Includes 0.4mm brass nozzle coated with TwinClad® XT wear resistant plating and non-stick composite additive. (Additional nozzle materials and sizes available separately)
- CNC machined and assembled in USA
- CR-6 SE
- CR-6 SE MAX

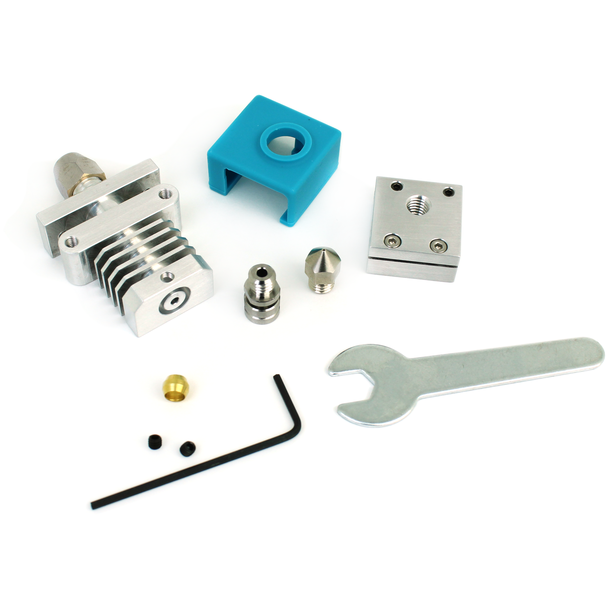

- Aluminum Cooling Block
- Grade 5 Titanium Heat Break
- Aluminum Heater Block
- Brass Plated Wear Resistant MK8 0.4mm Nozzle
- Silicone Sock
- Hardware kit
- MK8 Plated wear resistant nozzle (same nozzle included with Micro Swiss All Metal Hotends)
- MK8 Plated A2 Tool STEEL wear resistant nozzle (an even more wear resistant steel nozzle)
- M2 Hardened High Speed STEEL Nozzle - MK8 (The most wear resistant steel nozzle Micro Swiss makes)
- Additional sizes/materials are also available through https://store.micro-swiss.com/
