Mini Solid V Wheel™ Kits

  • $ 395

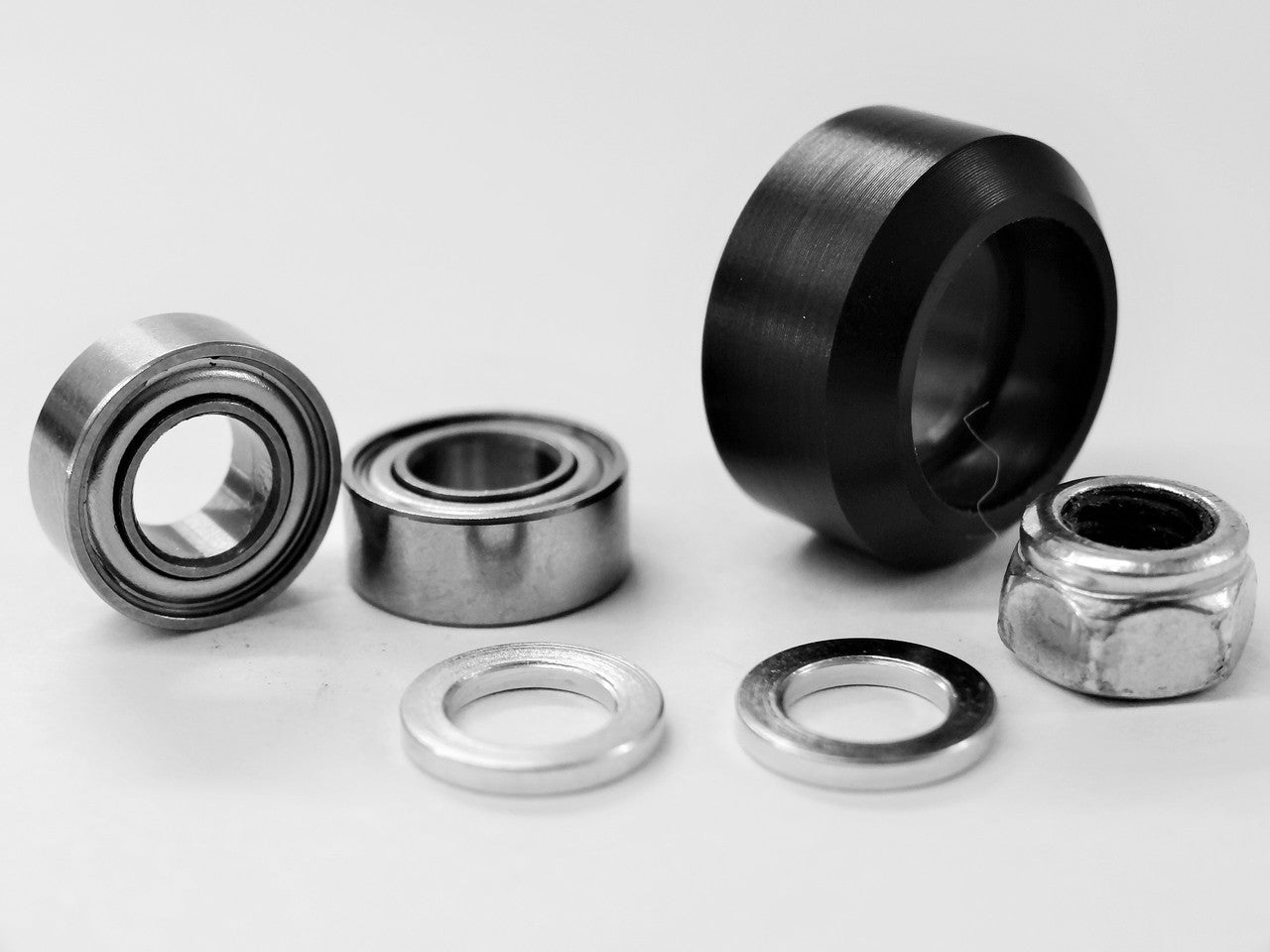

The OpenBuilds Mini V Wheel is used in combination with the Mini V Plate for a small form factor linear actuator guide. They can be used on a variety of projects and are great for use with any V-Slot Extrusion. Each wheel is carefully milled for consistent high precision and tolerance.

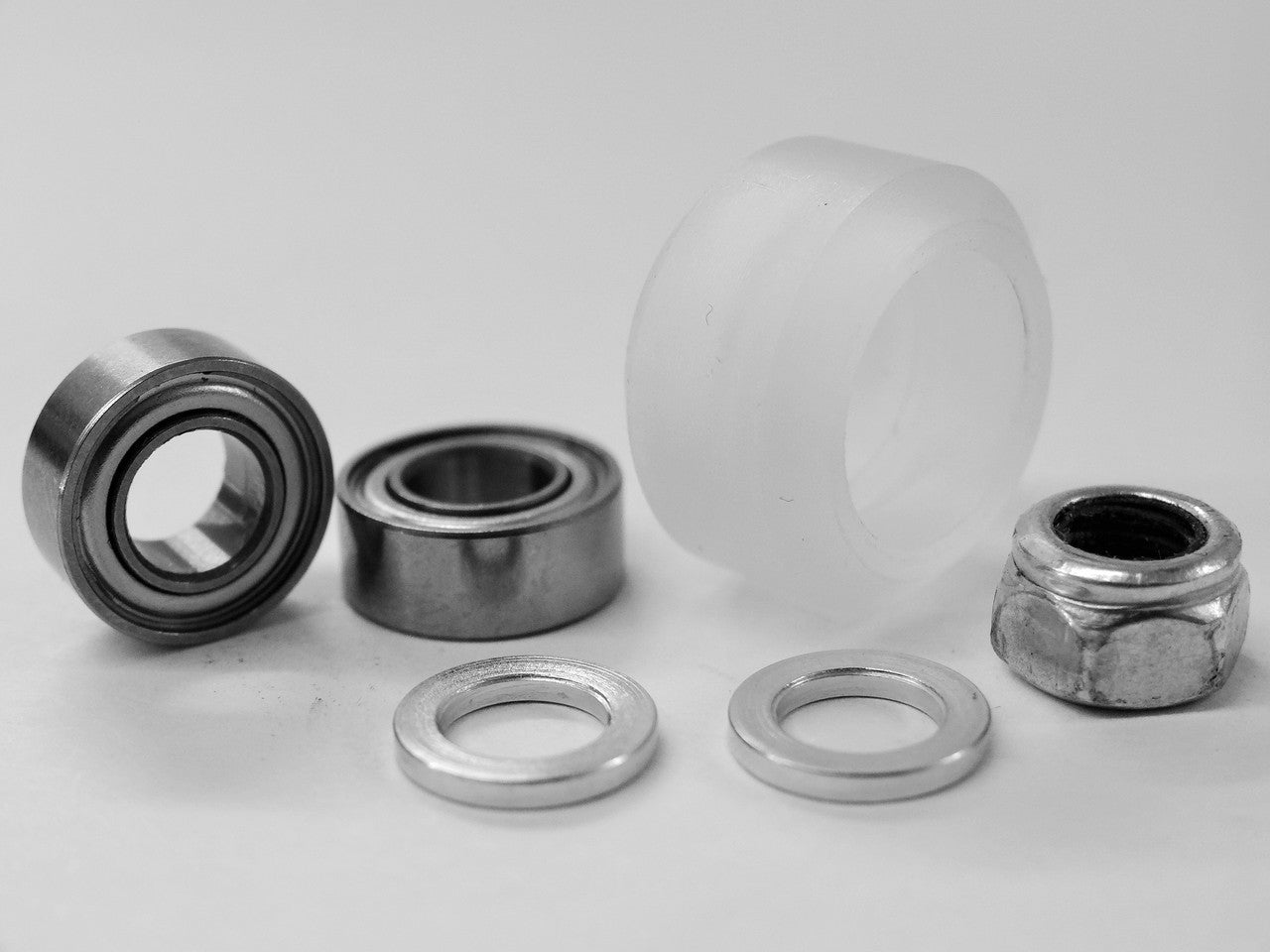

The Xtreme Wheels are designed to be used as a heavy duty alternative to the Delrin Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. These Xtreme Mini V's are made from very hard polycarbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better overall precision and strength for your builds.

So, while the Delrin Mini V Wheels work great for most light load applications, the OpenBuilds Xtreme Mini Wheels can be used for builds where heavier loads are required and less compression in the delrin is desired.

Each wheel is carefully milled for consistent high precision and tolerance.

 Part Details Delrin Solid Mini V-Wheel Xtreme Mini V-Wheel
Material Delrin (black) Polycarbonate (clear)
Dimensions 15.23 OD x 9.974 +/- 0.026 ID x 8.8 'thick' 15.23 OD x 9.974 +/- 0.026 ID x 8.8 'thick'
Rockwell Hardness M80 M 75
Compressive Strength 63Mpa 86Mpa
