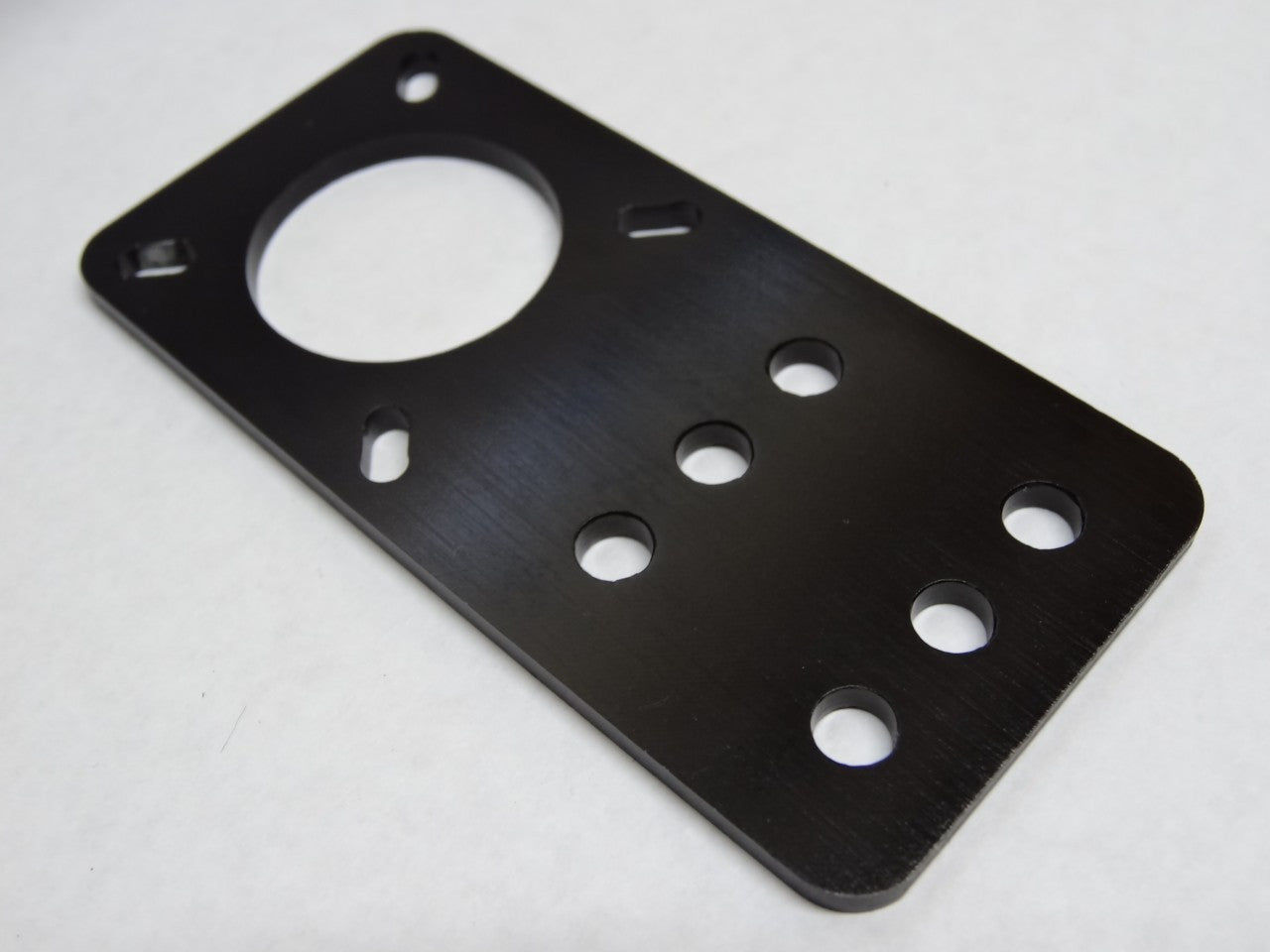

Motor Mount Plate for Nema 17 Stepper Motor

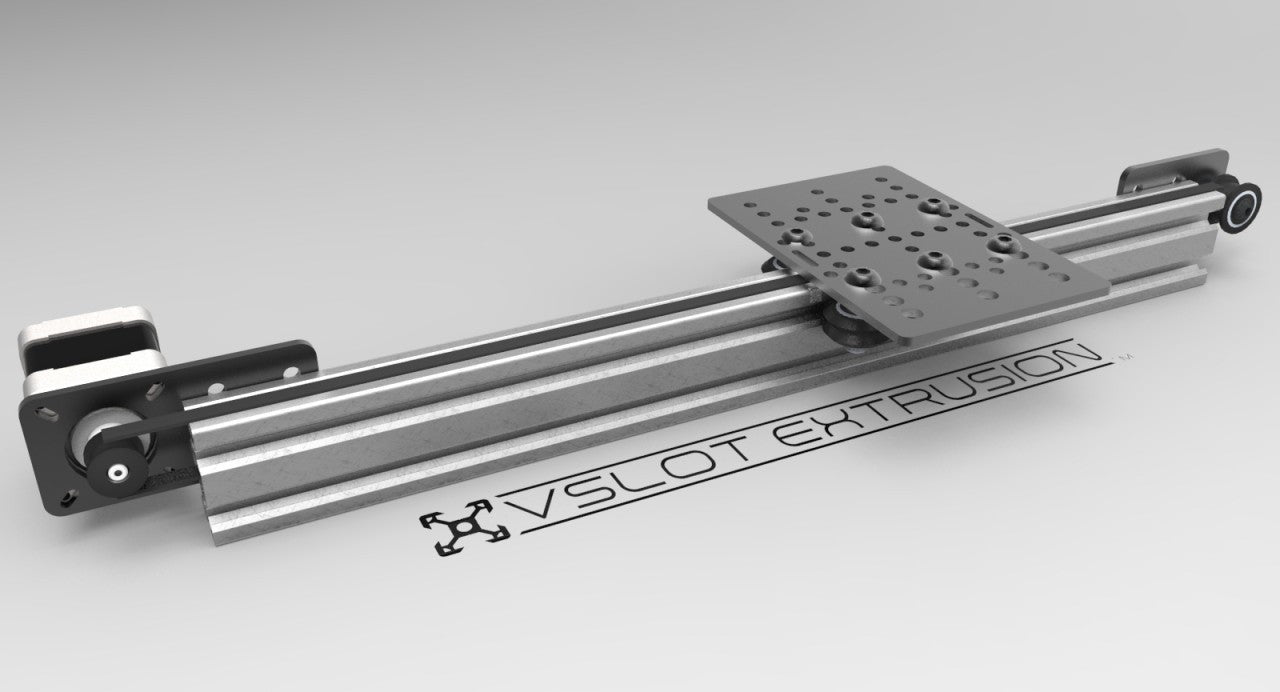

Easily mount a NEMA 17 Stepper motor onto any plate or V-Slot Linear Rail to create a belt & pinion or any other type of actuator.
The Motor Mount Plate can be used with V-Slot, C-Beam, and OpenRail. The idea behind this plate is to give you a mountable yet movable plate for your Nema 14, Nema 16, or Nema 17 sized stepper motors. This works great as it allows you to easily mount your motor anywhere on the extrusion. There are numerous possible mounting configurations when using this plate.
This mount works great with the custom OpenBuilds NEMA 17 stepper motors (sold separately). If you need a Nema 14, Nema 16, or Nema 17 sized motor with different specifications for your application we recommend checking out the selection of stepper motors at StepperOnline.com. (affiliate link) We have used their motors in several of our personal builds and have been very satisfied with the results.
(This plate design was inspired by Barton Dring of buildlog.net)
- 6063-T6 Aluminum
- Black Anodized Finish
- 3mm~ (1/8") Thick
