NEMA 17 Stepper Motor
Shipping calculated at checkout.

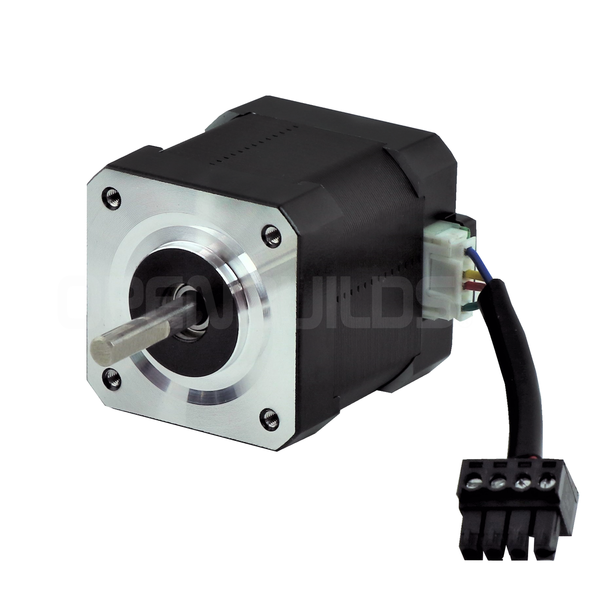

This custom OpenBuilds NEMA 17 Stepper Motor is a great choice for your lighter duty high precision CNC projects.
- Plug and Play Xtension connector for easy and fast install
- "D"-shaped motor shaft for a more secure connection to pulleys or couplers.
- Includes 7 feet of wire.
What is Included:
- (1) NEMA 17 Stepper Motor
- (1) 7 Foot lead (2.13m) 4 conductor wire
- (1) 3” Xtension Male to JST Male
- (1) Xtension connector ( 4 pin ) male
- (1) Xtension connector (4 pin ) female

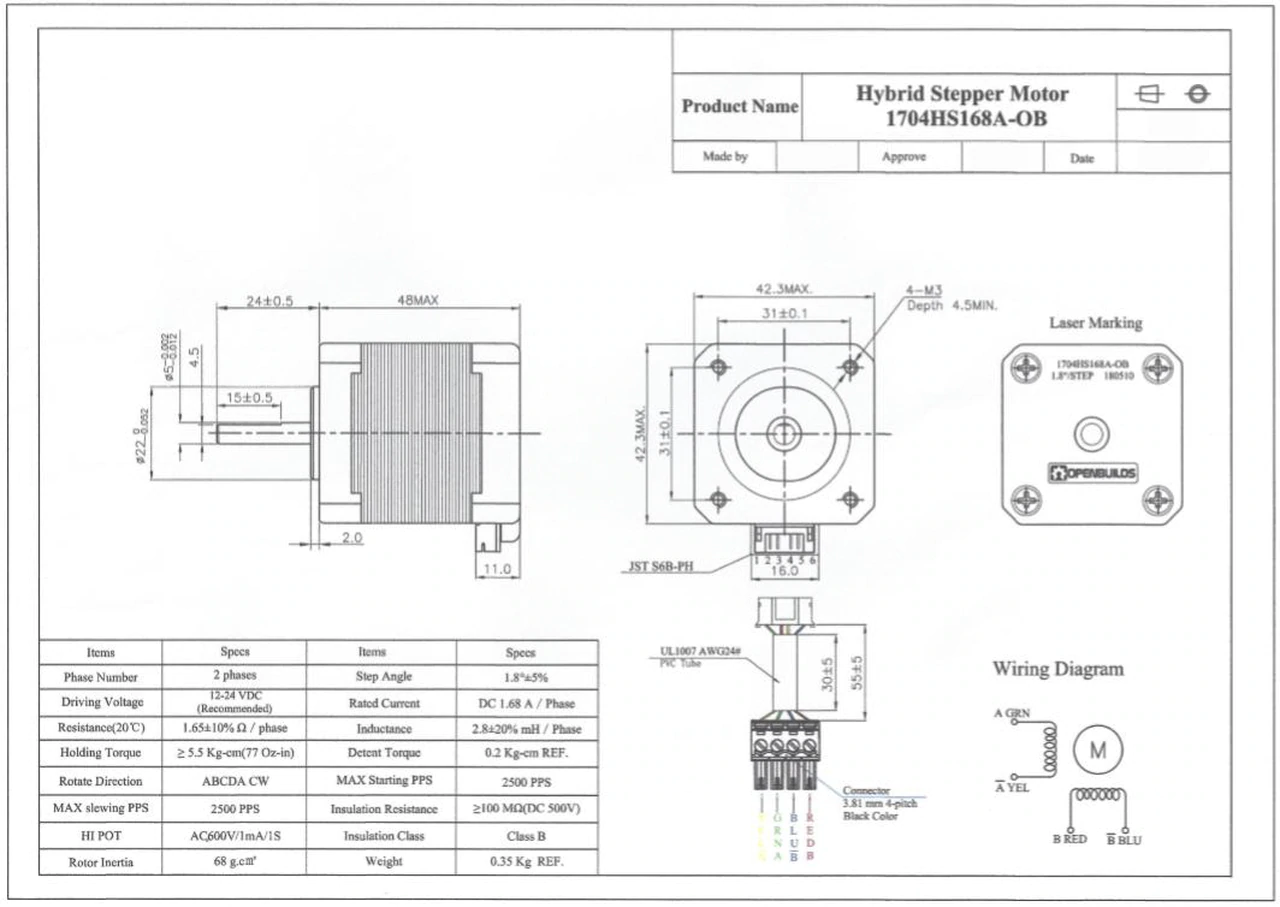

- Shaft Size: 5mm

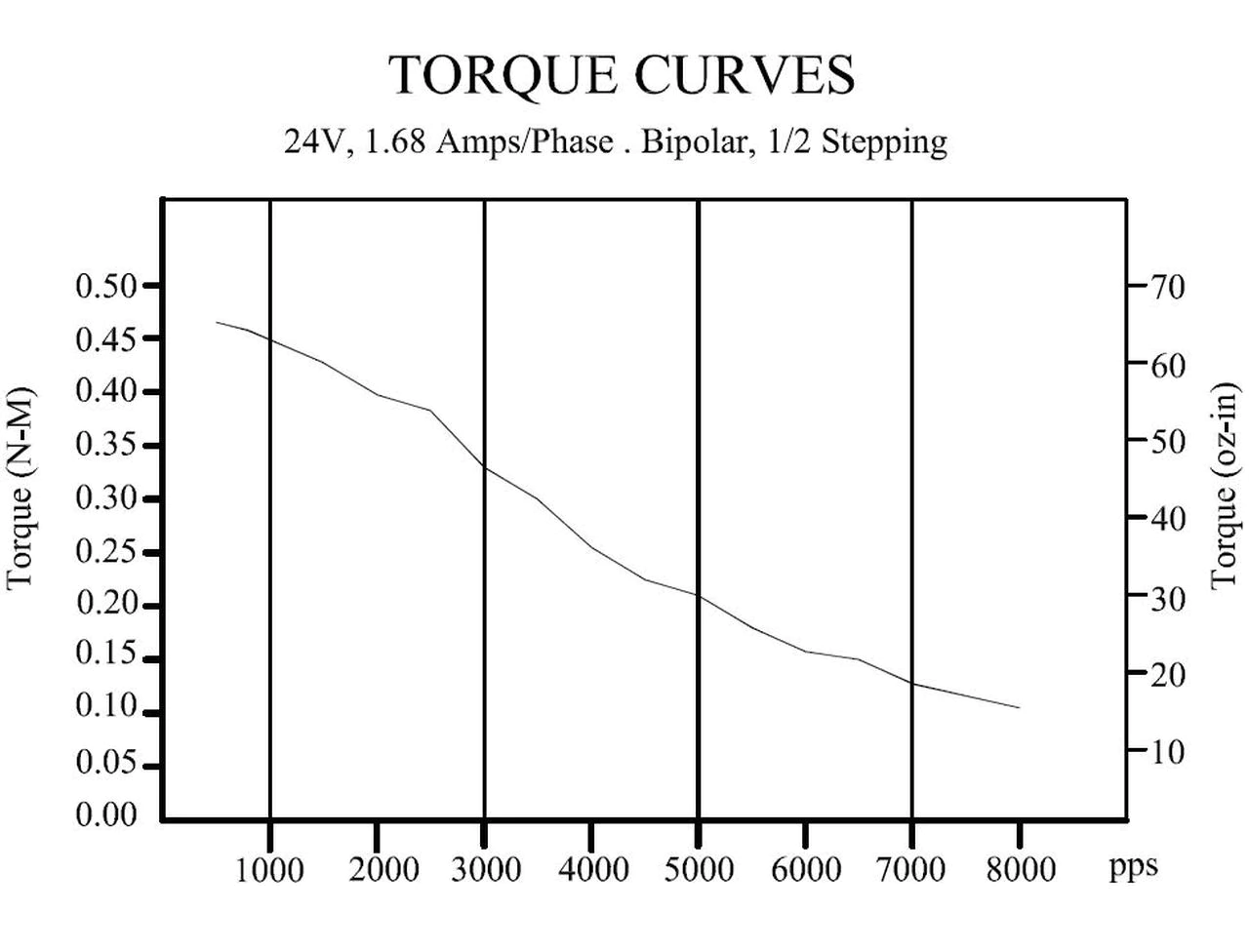

- Torque: 76 oz*in
- Step Angle: 1.8°
- Peak Current is 1.68A/phase
- M3 Mounting Holes
- 4 Wire Bi-Polar
- 12-24VDC (Recommended)
- RoHS Compliant
These motors can be used with the following OpenBuilds motor mounts.
- Linear Actuator End Mount
- Motor Mount Plate for Nema 17 Stepper Motor
- Threaded Rod Plate™ for Nema 17 Stepper Motor
