V Wheels™

$ 2.39
Unit price per

Shipping calculated at checkout.

Quantity

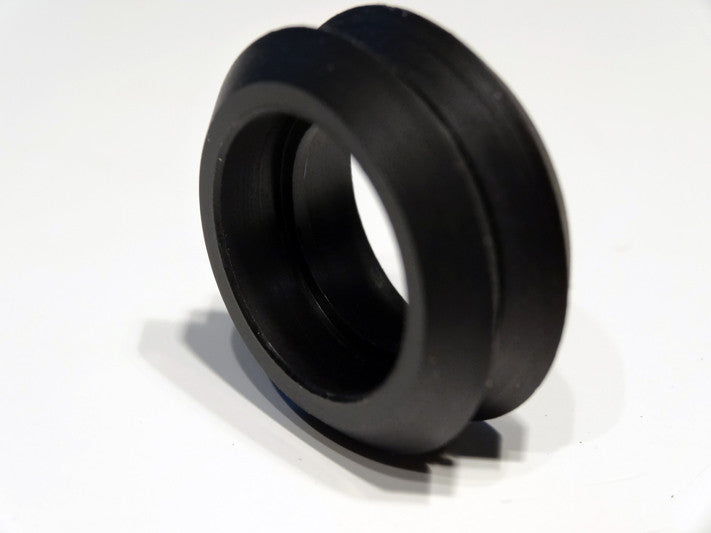

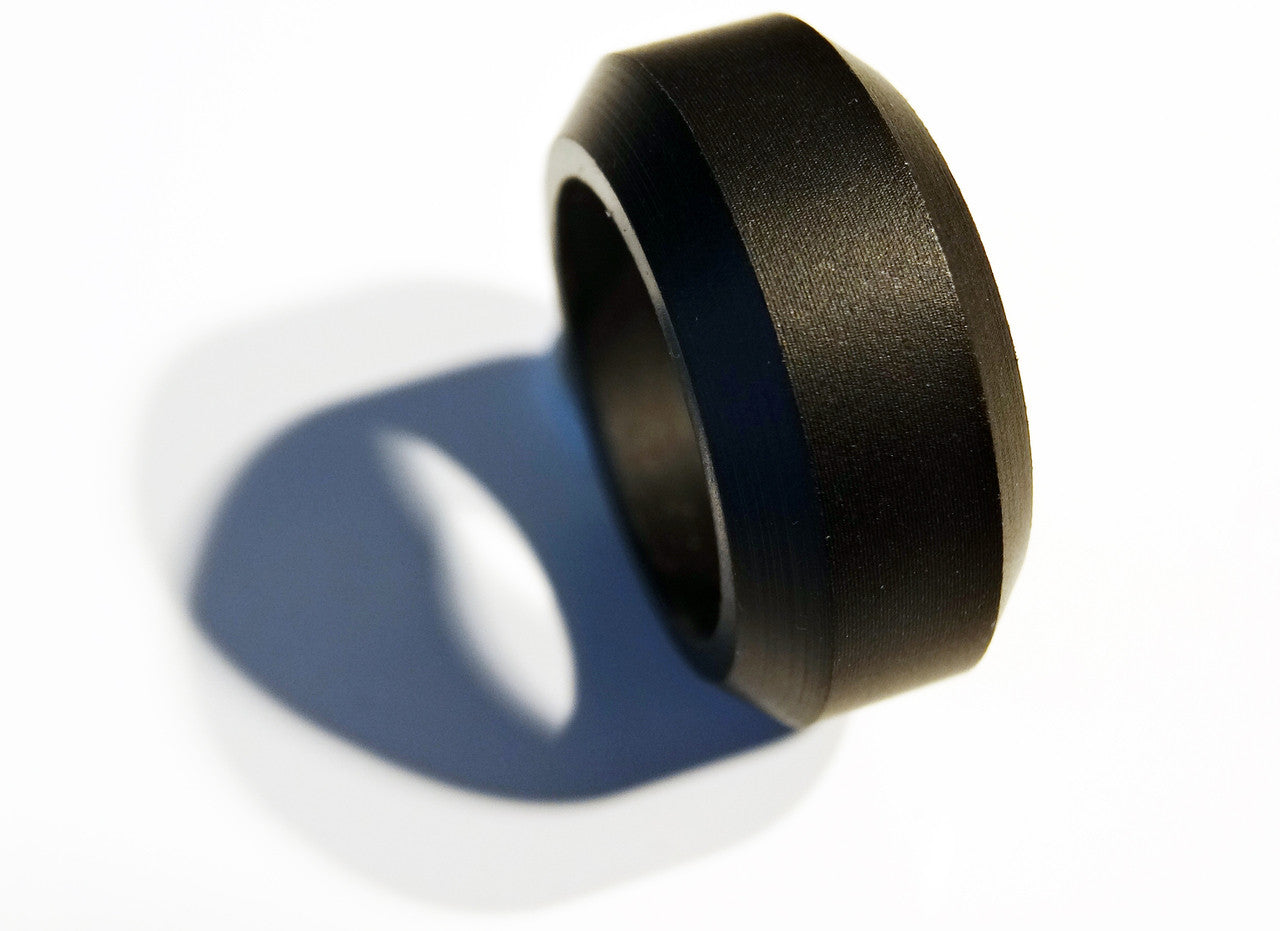

Please note the difference between the "standard" v-wheel design ( W - shape) and the more common "solid" v-wheel design ( \_/ - shape ) when ordering to make sure you select the right profile for your needs.

The OpenBuilds V Wheels are great for use with any V Wheel Linear Guide System. They can be used with V-Slot Extrusion and OpenRail. These wheels have a double v shape that allows for them to ride on the V-Slot™ as well as the OpenRail™ or MakerSlide. The steel wheels are designed to run on hardened surfaces and may cause increased wear if used on aluminum V-Slot or softer metals.

This includes the OpenBuilds V Wheel Only. Save time and money with the full Kit!

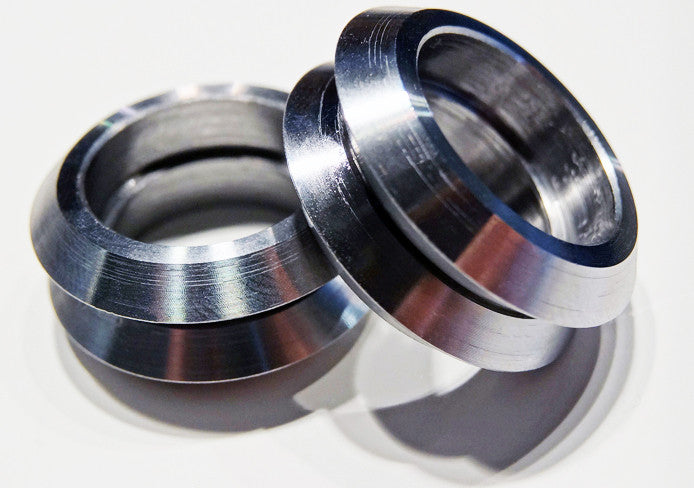

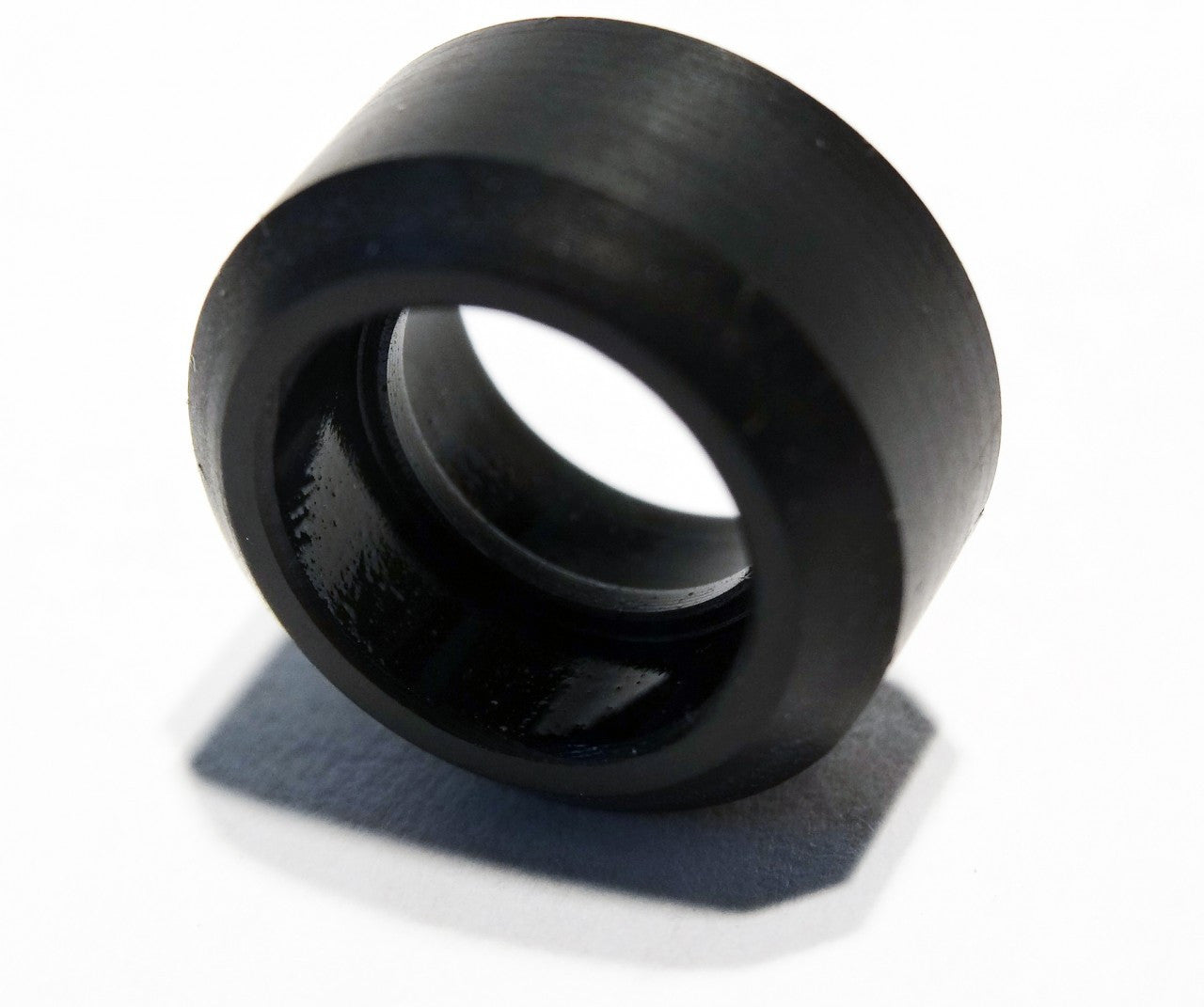

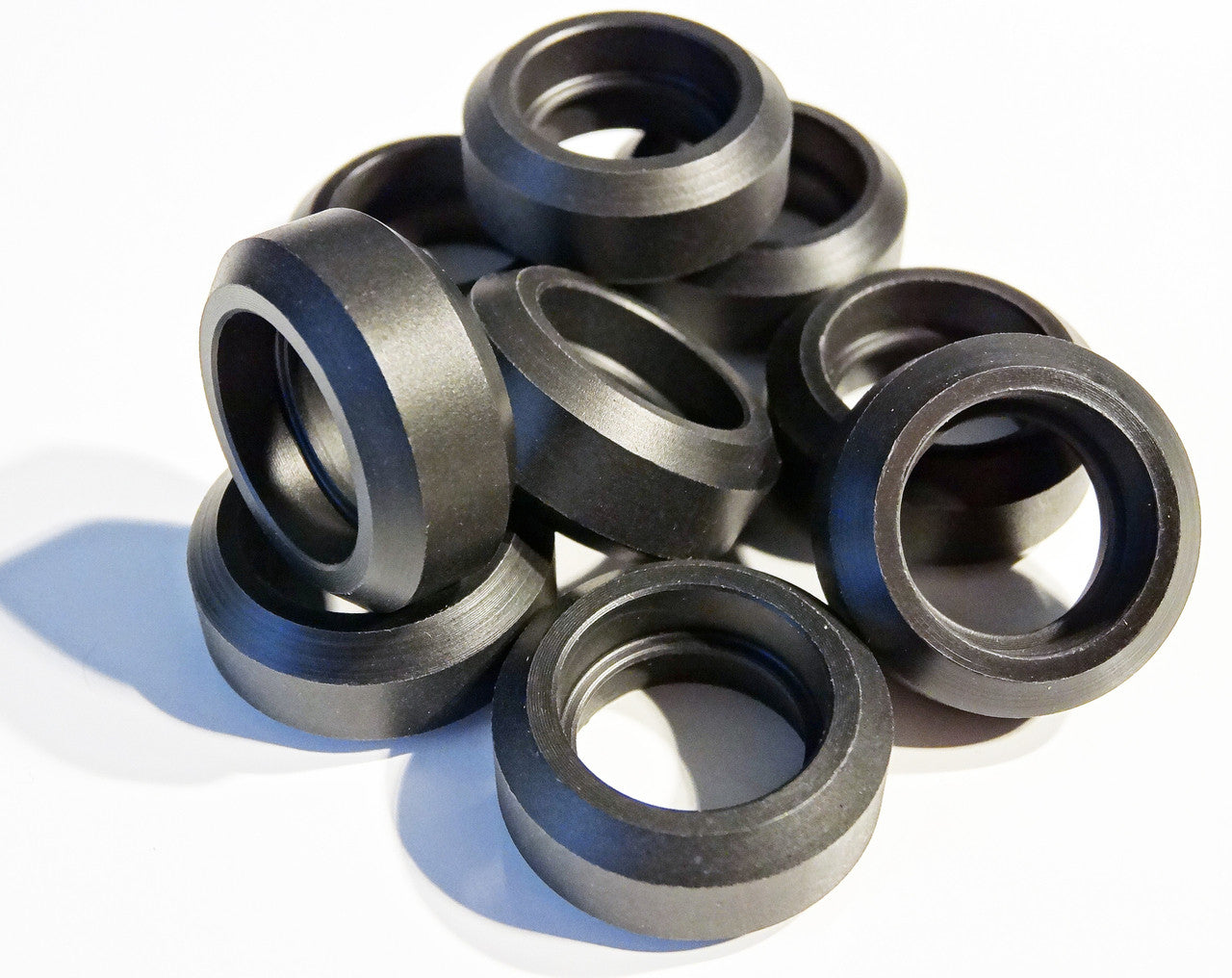

Part Details	Delrin V-Wheel	Steel V-Wheel
Material	Delrin (black)	Carbon Steel 45
Dimensions	24.39 OD x 15.974 +/- 0.026 ID x 10.23 'thick'	24.39 OD x 15.974 +/- 0.026 ID x 10.23 'thick'
Rockwell Hardness	M80	(30~40 HRC)
Compressive Strength	63Mpa
