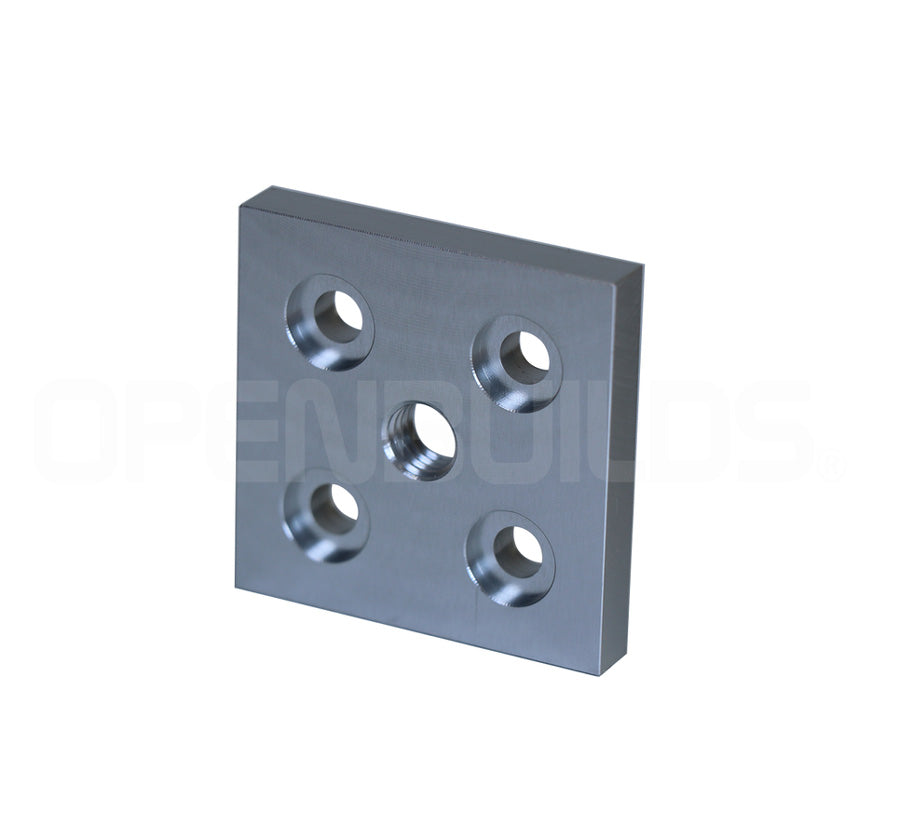

40x40 V-Slot Center Threaded Foot Plate

  • $ 3.99
    Unit price per
Shipping calculated at checkout.

Add mobility to your custom tables with OpenBuilds threaded Foot Plate.

This plate connects directly to ends of 40x40 V-Slot and allows for an M8 threaded caster to be attached. This plate is designed to work with the OpenBuilds M8 Locking Caster Set.

NOTE: You will need to tap the holes on the 40x40 V-Slot extrusion with an M5 threaded tap to connect this plate.


  • Center hole is taped for M8 threads for easy installation
  • Mounting screw holes are recessed to avoid obstructing caster movement.
  • Compatible with OpenBuilds 40x40 V-Slot Linear Rail



  • (1) 40x40 Threaded Caster Plate



  • Center Threads:    M8
  • Mounting:             Use four (4) M5 Screws
  • Size:                      40x40mm
  • Thickness:             6mm
  • Material:               Aluminum
  • Finish:                   Mill
