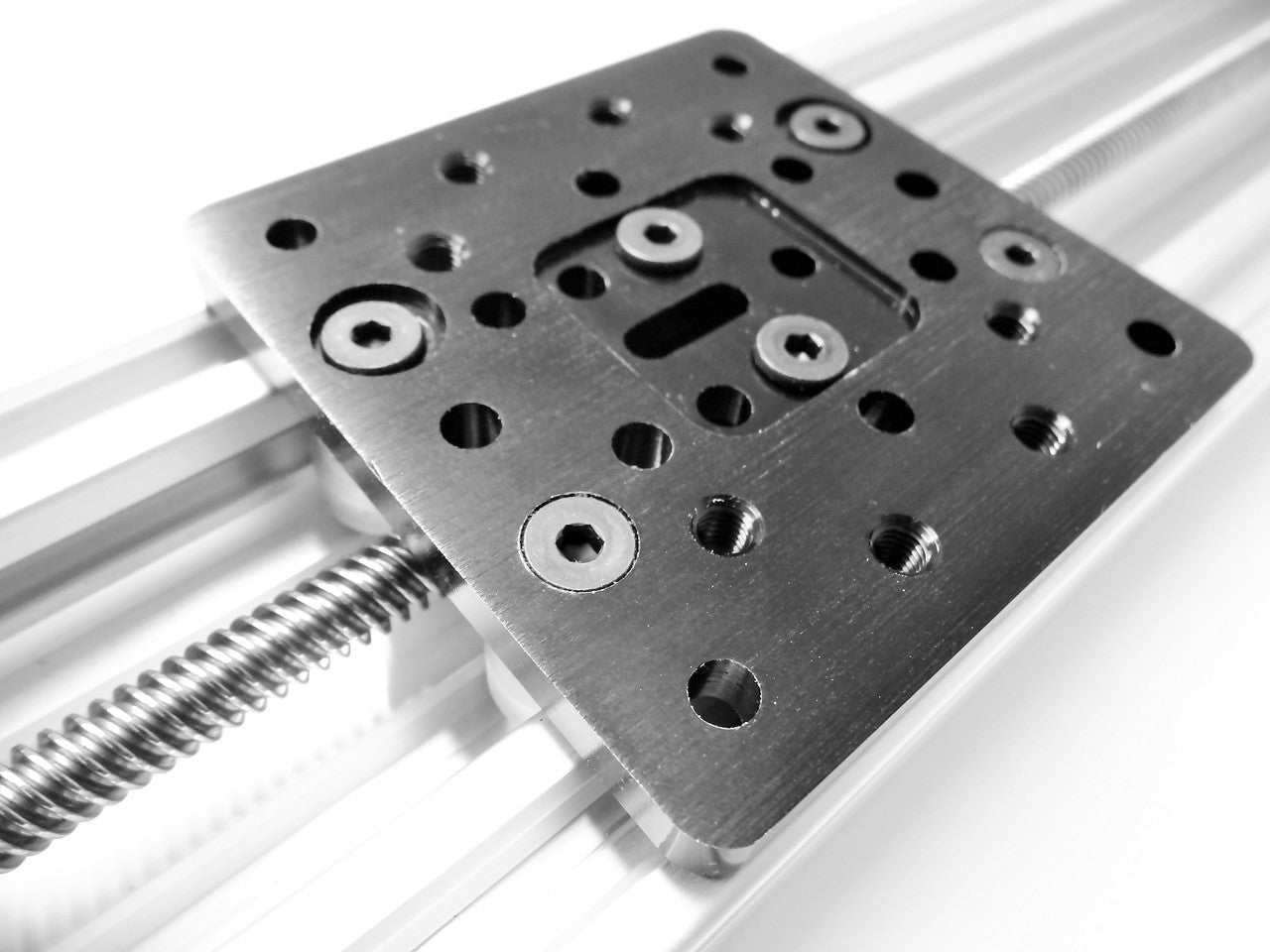

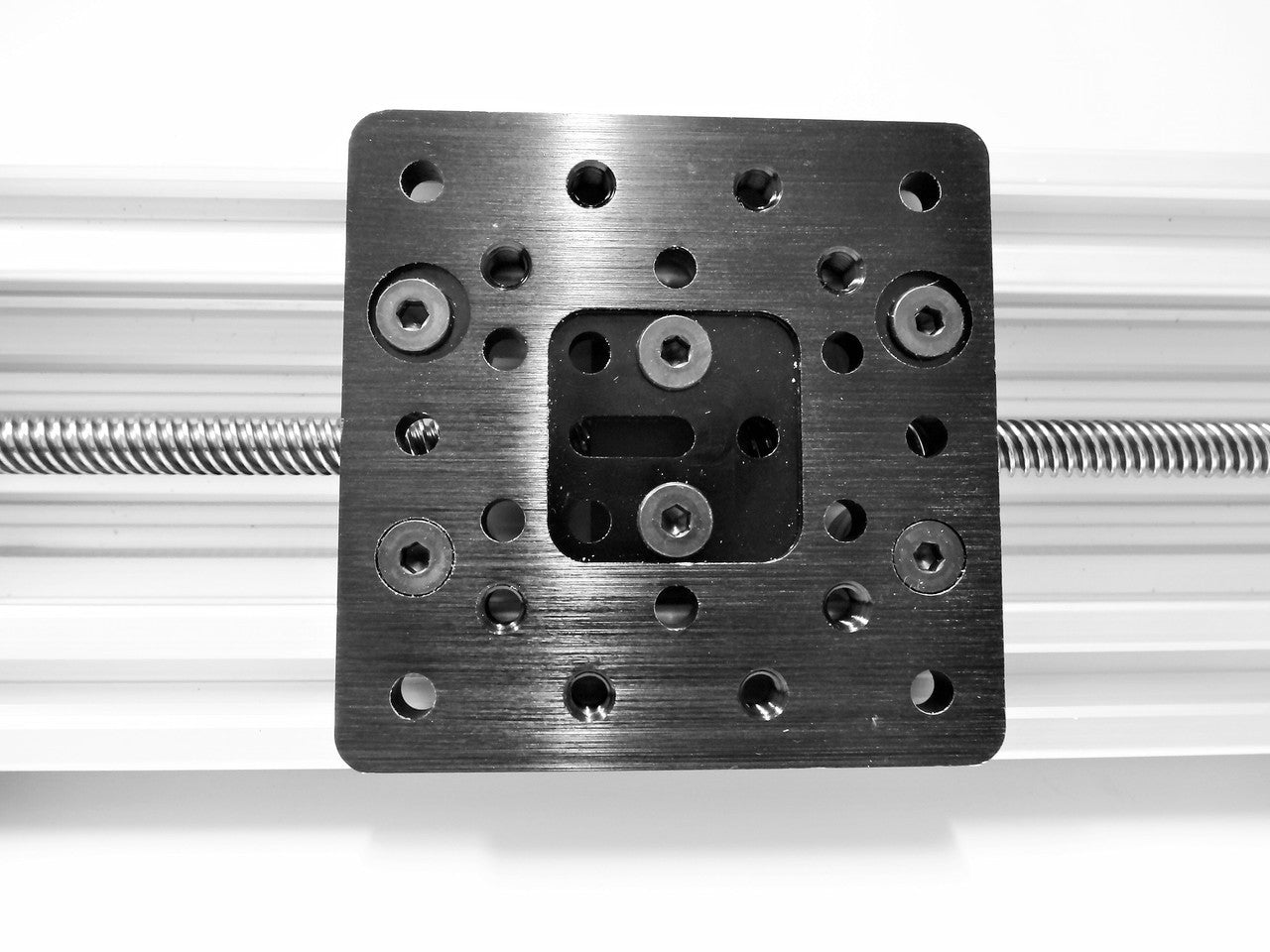

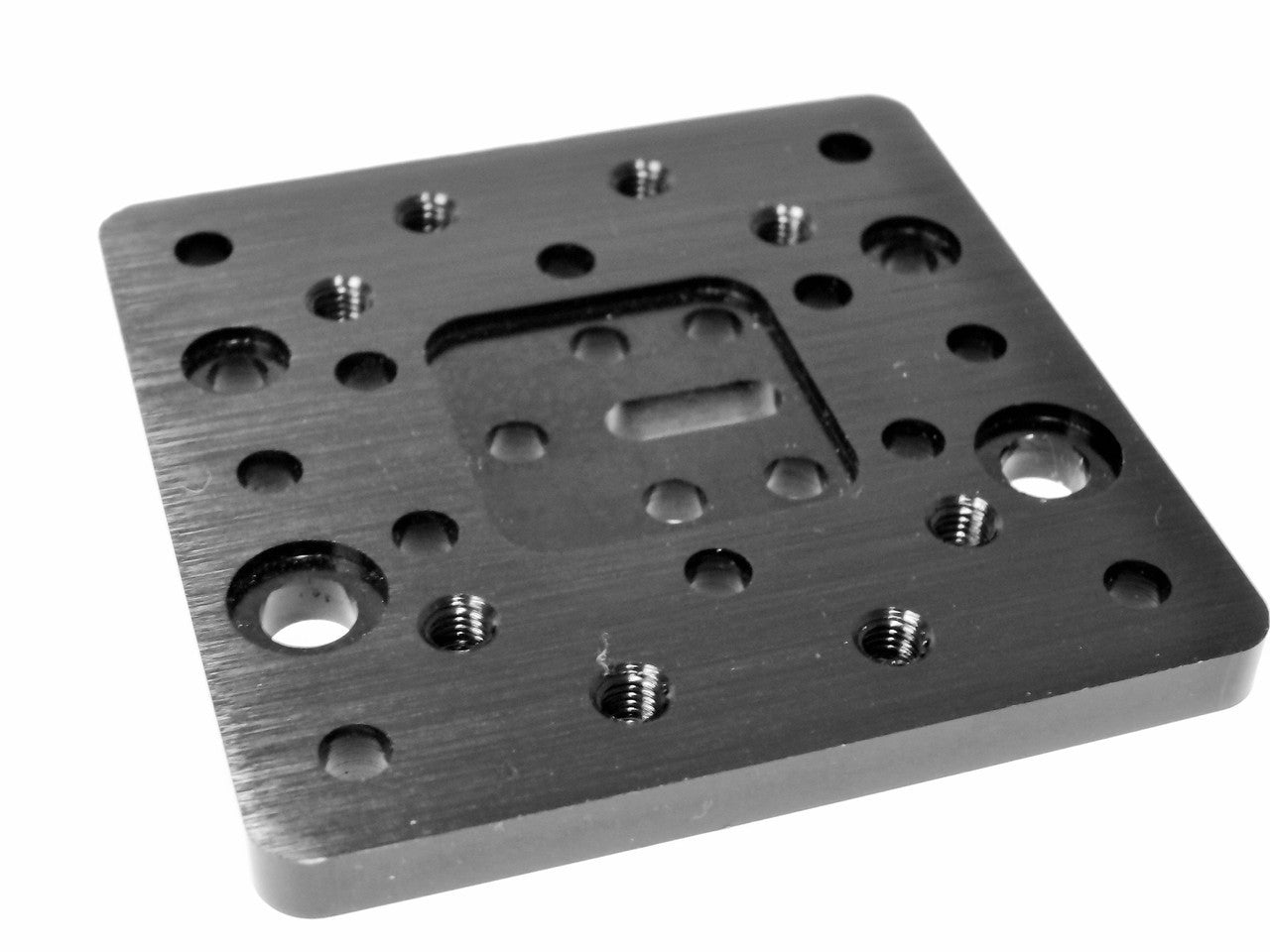

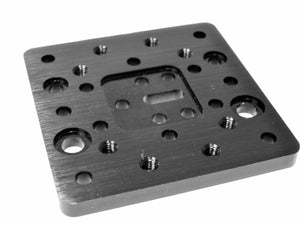

C-Beam™ Gantry Plate

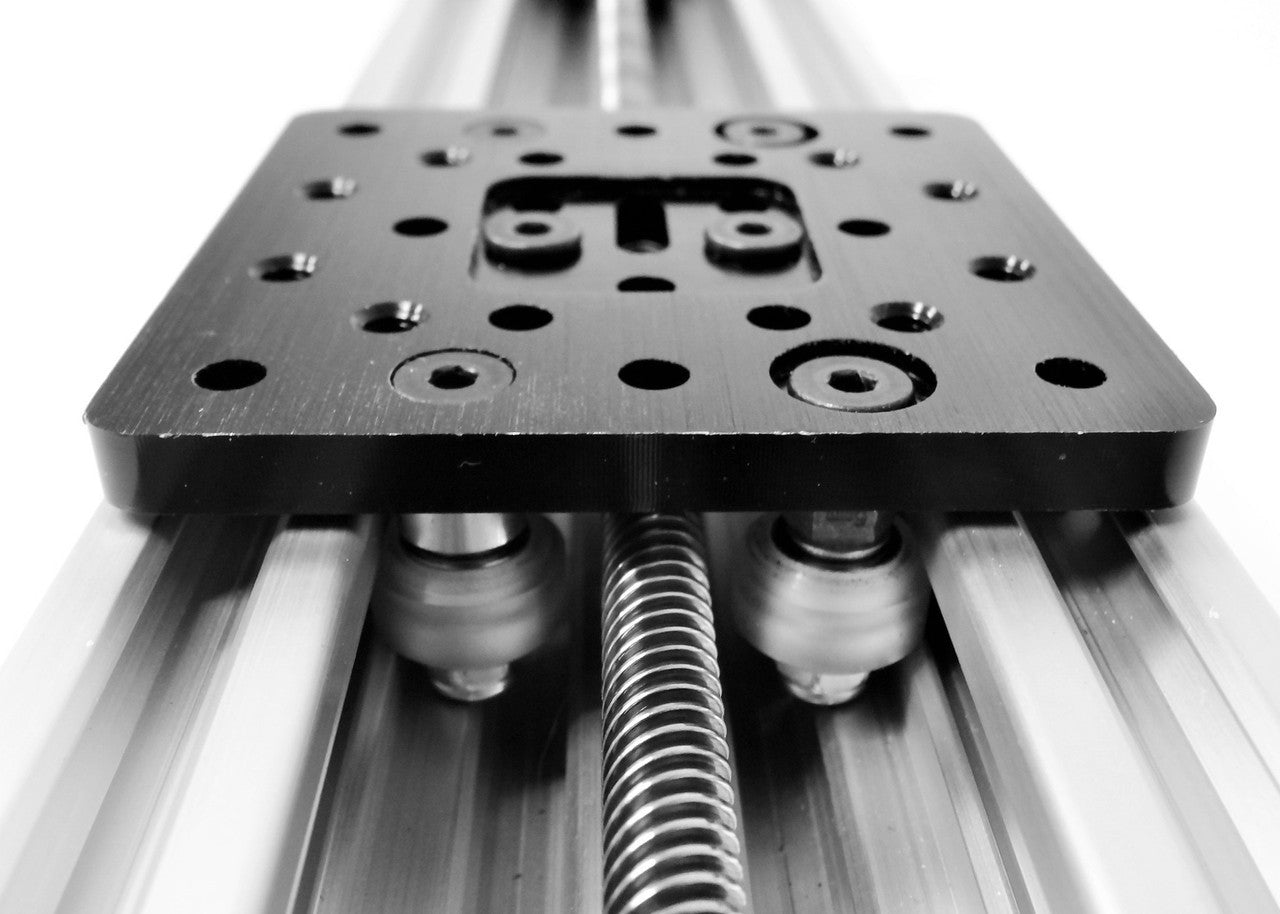

A gantry plate designed specifically to give a clean and compact look while able to ride inside of the C-beam Linear Rail System using Mini V Wheels.

• Strong 6mm thick aluminum 6061- T5 plate
• Shiny black anodized for a finished look
• Recessed screw pockets ensure flush mounts
• Includes pre-tapped mounting holes for C-Beam Riser Plates
• Adjustable center hole mount allows for belt actuator configurations
• Use in conjuction with either the Xtreme Mini Wheels or the Delrin Mini Wheels.
