Mini V Gantry Plate

Shipping calculated at checkout.

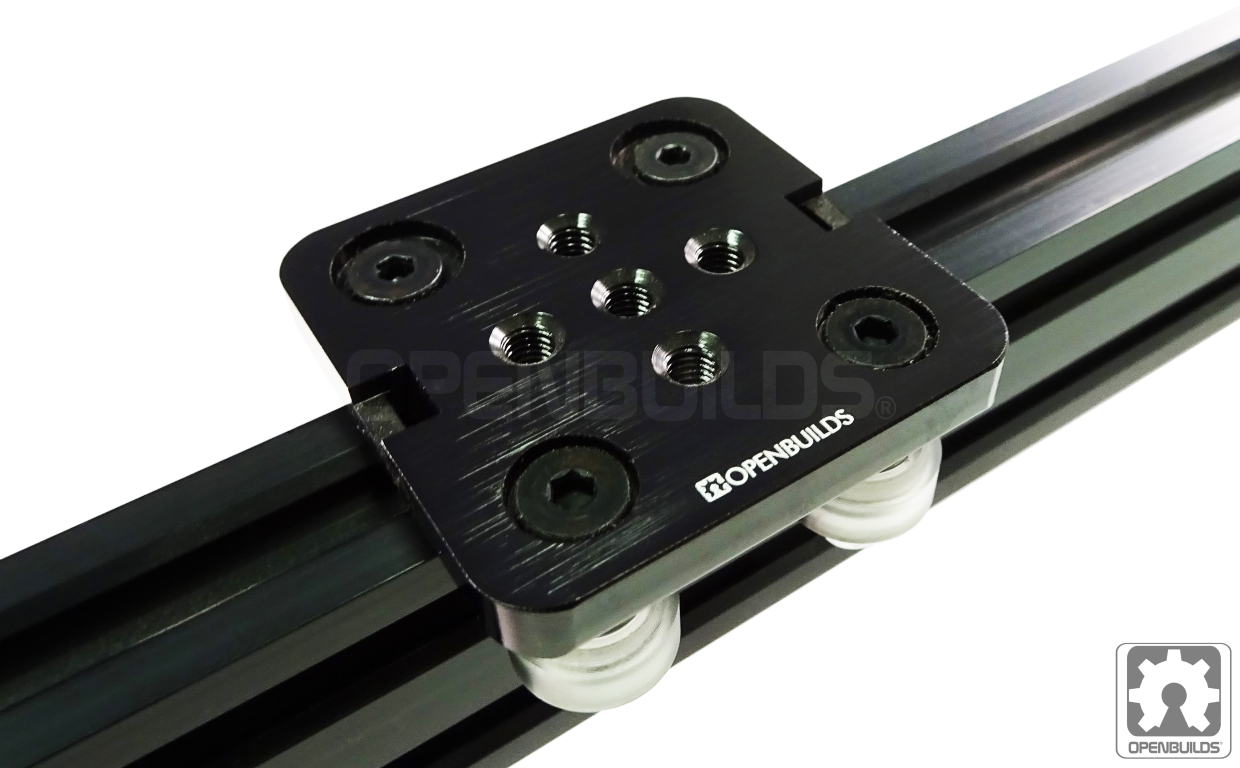

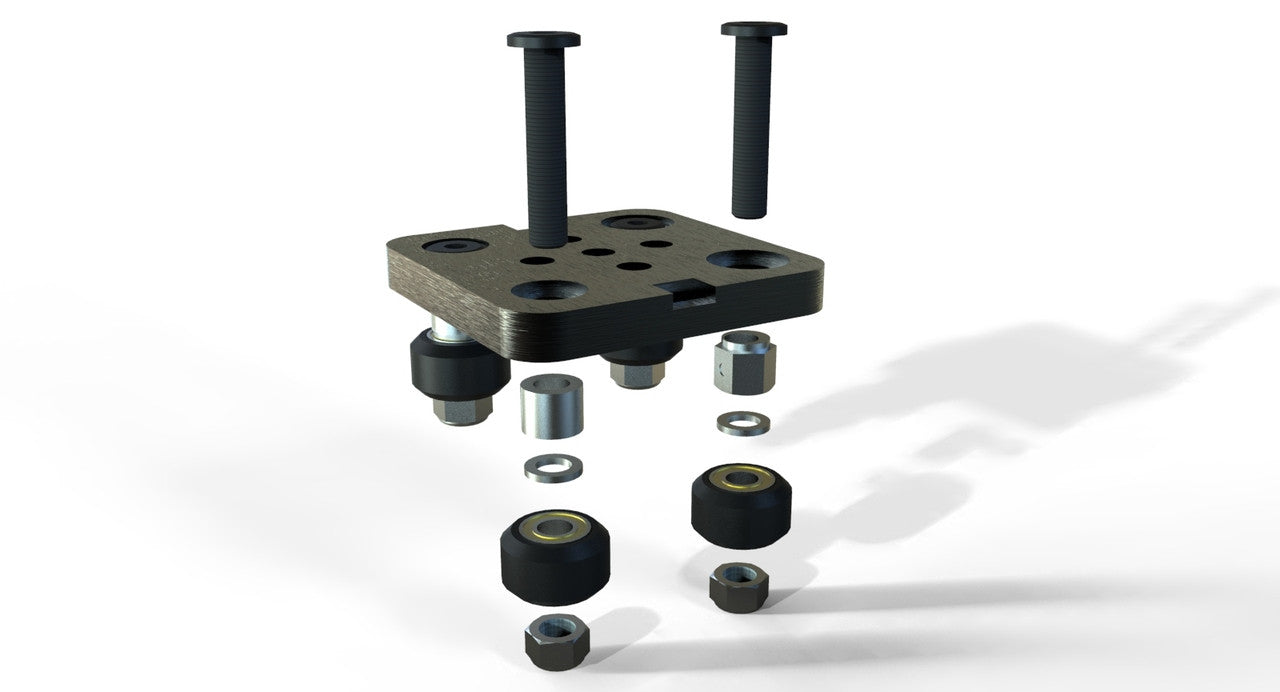

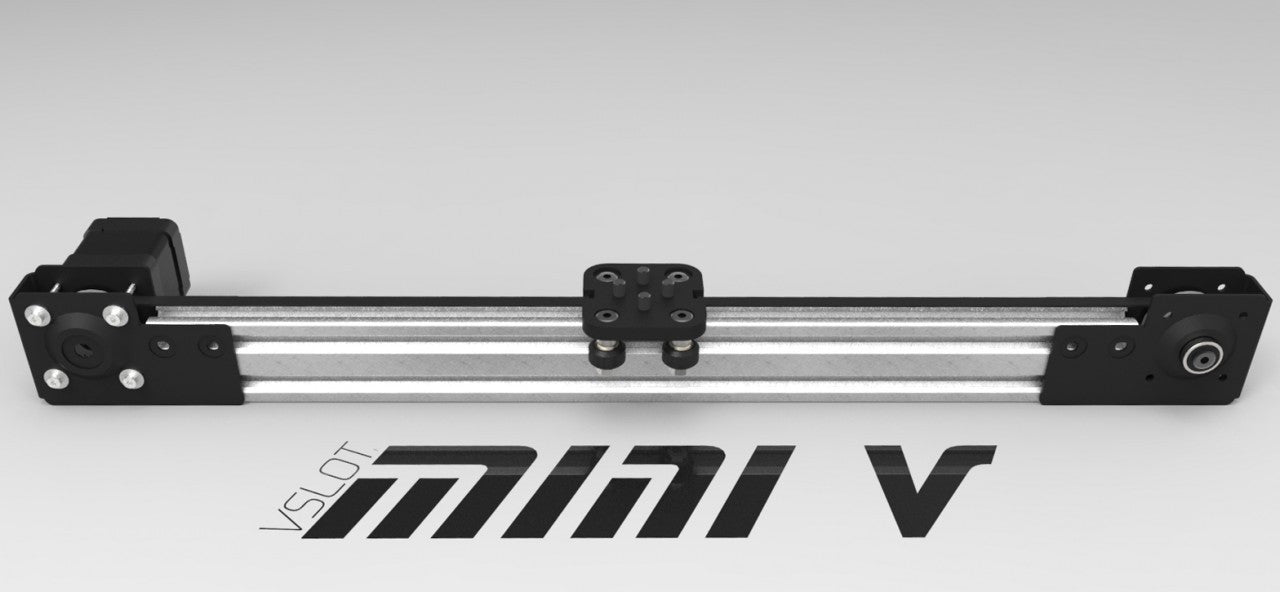

This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels or the Xtreme Mini V Wheels. It's super strong and has a small form factor. This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!

Part Details

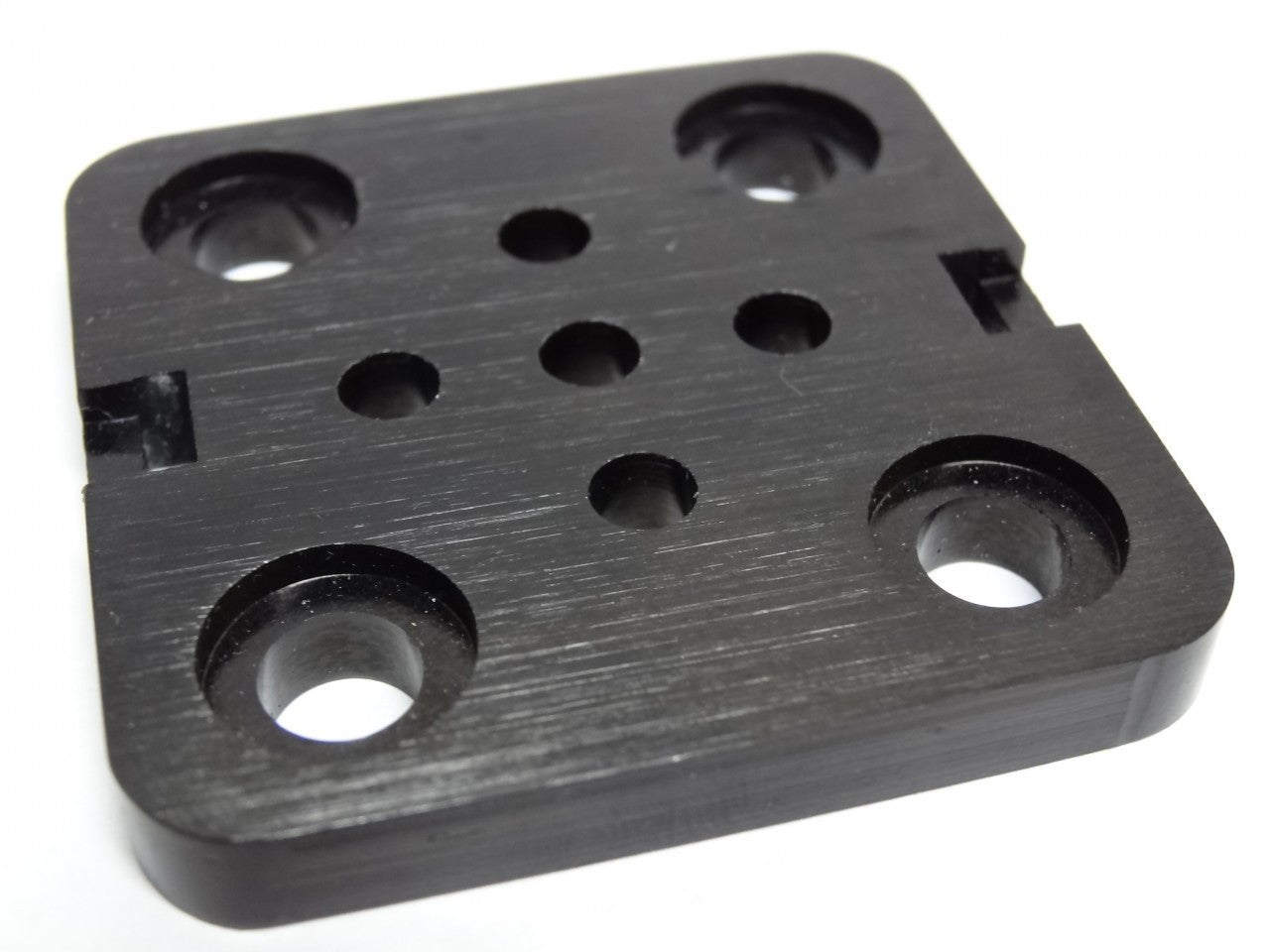

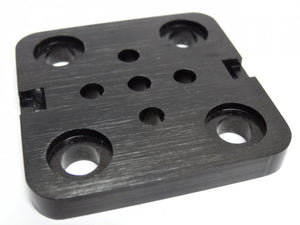

  • Dimensions: 50 x 50 x 6.35mm 'thick'
  • 6063-T6 Aluminum Black Anodized Brushed Finish

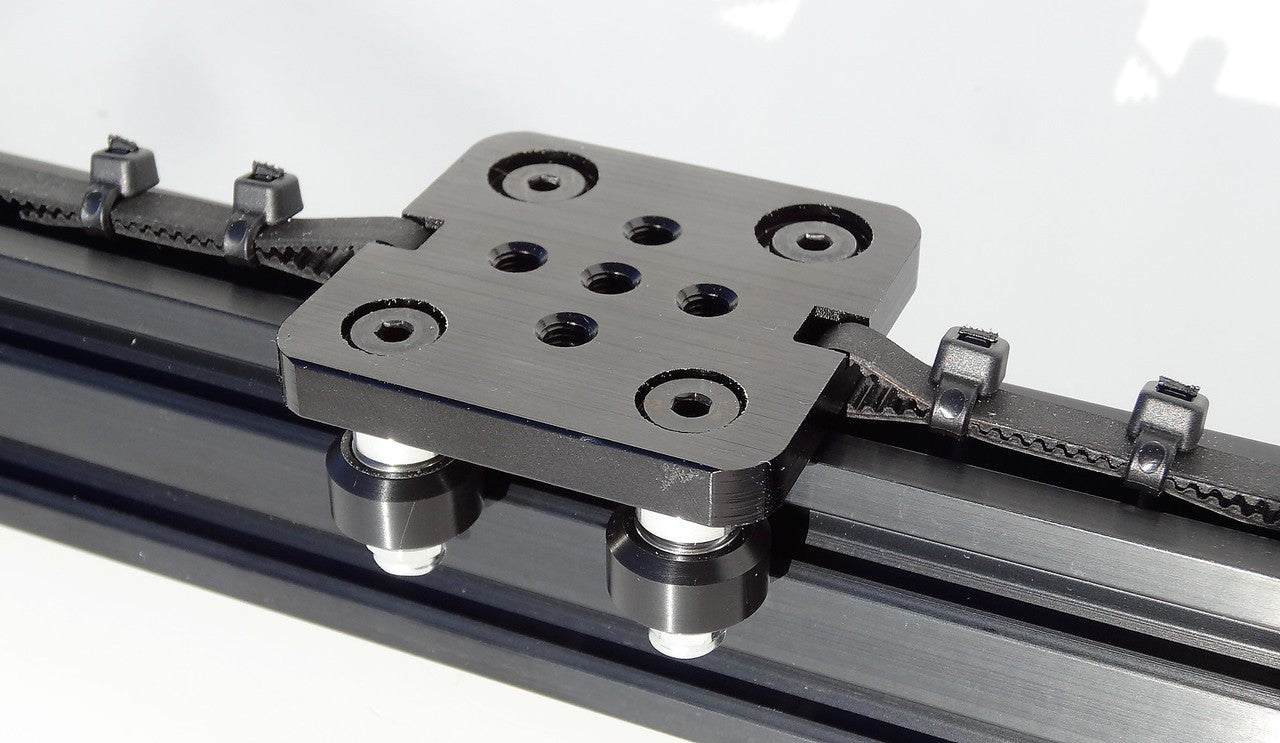

  • Belt loop side notched for 1/4" belt
  • Recessed Screw holed for post flush mount
