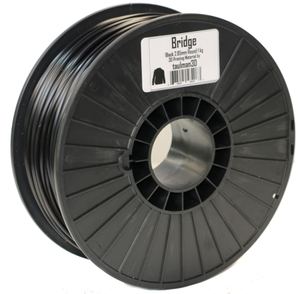

Taulman3D "Bridge" Nylon filament

Taulman3D "Bridge" Nylon filament

  • $ 20.00
    Unit price per
Shipping calculated at checkout.


Bridge is a variation of 645. As a result of 3D printer's requests, Taulman3D worked with their chemical group/company to make changes in the cooled surface of the polymer. This was a major effort to increase the ability to print on non-garolite surfaces. While the shrinking factor for all nylons is slightly higher than ABS, the ability to adhere to a PVA (white glue) in such a way as to overcome the amount of total shrinkage, increases the success of parts printed in nylon. Bridge is used for any parts that require the strength of nylon, yet are large and prone to pulling away from the print bed at sharp transitions. Bridge carries the same flexibility as 645 and a slippery surface texture on all perimeters. Bridge was also defined as a high quantity run polymer, thus reducing end cost.

GeckoTEK's  EZ-STICK HOT build surface works great with Taulman3d's nylon filaments.

1 lb. spools

Nylon "Bridge"
Recommended Extrustion Temperature: 245°C - 265°C
Recommended Nozzle size: Any Size

Recommended Print Speed:

Equivalent to 80% of regular ABS speeds

Recommended Retraction Settings:

1mm per 0.1mm of nozzle diameter

(ie. 5mm retraction when using a 0.5mm diameter nozzle)

Recommended Print Surface:

Hot - GeckoTek EZ-Stik Hot heated to 30-50°C

Or glass bed heated to 45°C with a coat of PVA glue
