Threaded Rod Plate™ for Nema 17 Stepper Motor

  • $ 7.99
    Unit price per
Shipping calculated at checkout.

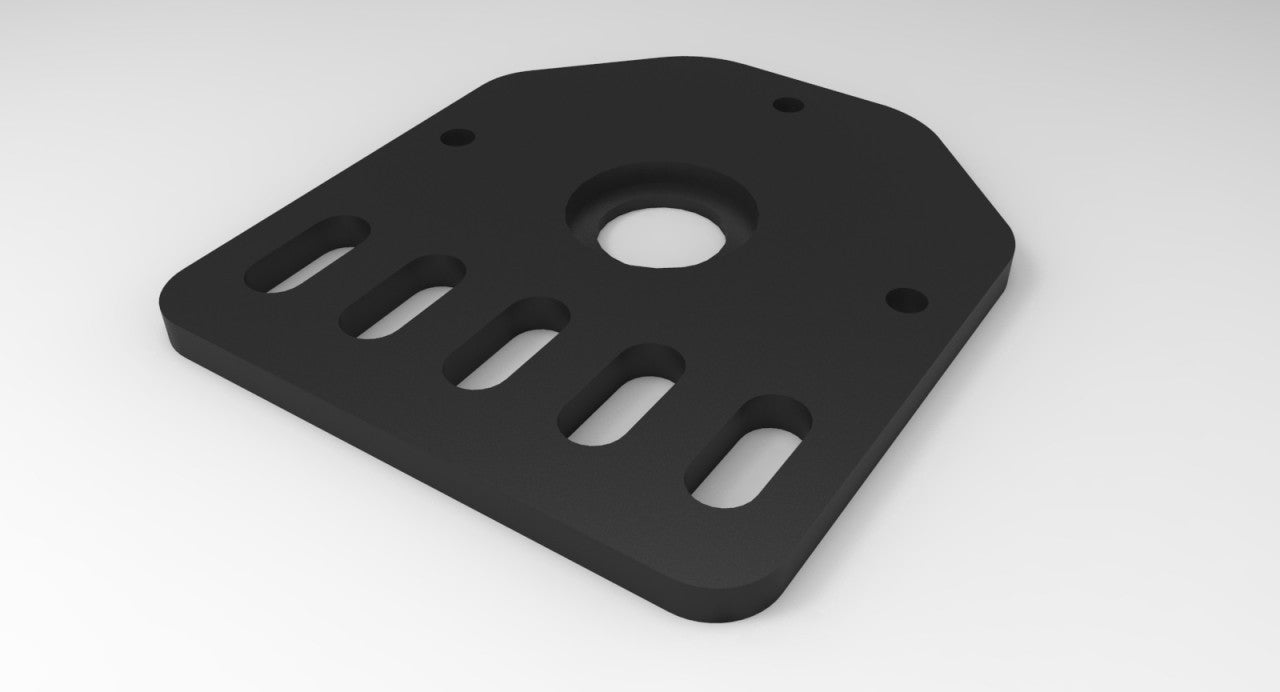

This plate can be used with both V-Slot and OpenRail. The idea behind this plate is to give you a universal mounting plate for your projects that require a threaded rod. There are a lot of possible mounting configurations for this plate.

This mount works great with the custom OpenBuilds NEMA 17 stepper motors (sold separately). If you need a Nema 17 sized motor with different specifications for your application we recommend checking out the selection of Nema 17 motors at (affiliate link) We have used their motors in several of our personal builds and have been very satisfied with the results.


  • V-Slot and OpenRail compatible.
  • Recessed bearing opening for lead screw mounting.
  • Several slotted mounting screw holes for fine adjustment and configurability.

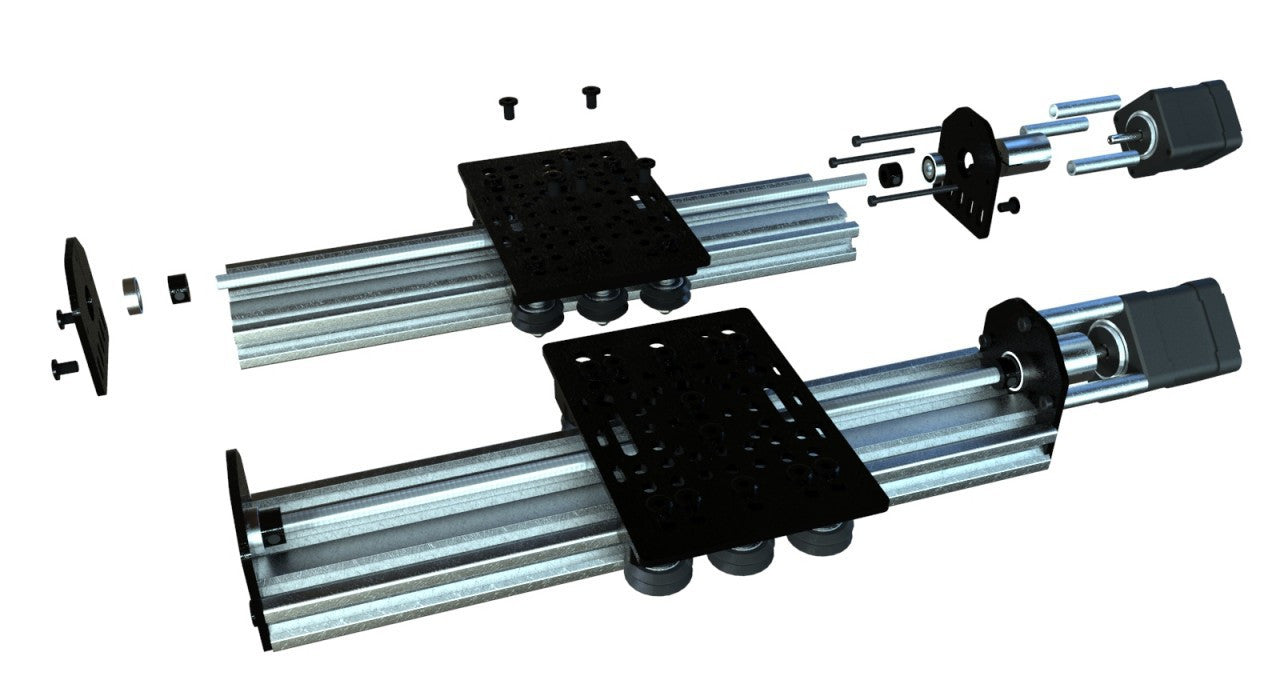

  • Use with 45mm long M3 screws and 1.5" aluminum spacers to mount Nema 17 motors in a stand off position.


  • (1) Threaded Rod Plate – NEMA 17


  • Size:  53 x 59mm
  • Thickness:   3mm
  • Material:  6063 - T6 Aluminum
  • Finish:  Brushed and Anodized
  • Color:   Black

(This design was inspired by Shapoko at
