Graphic Controller Adapter for Sanguinololu-based Boards

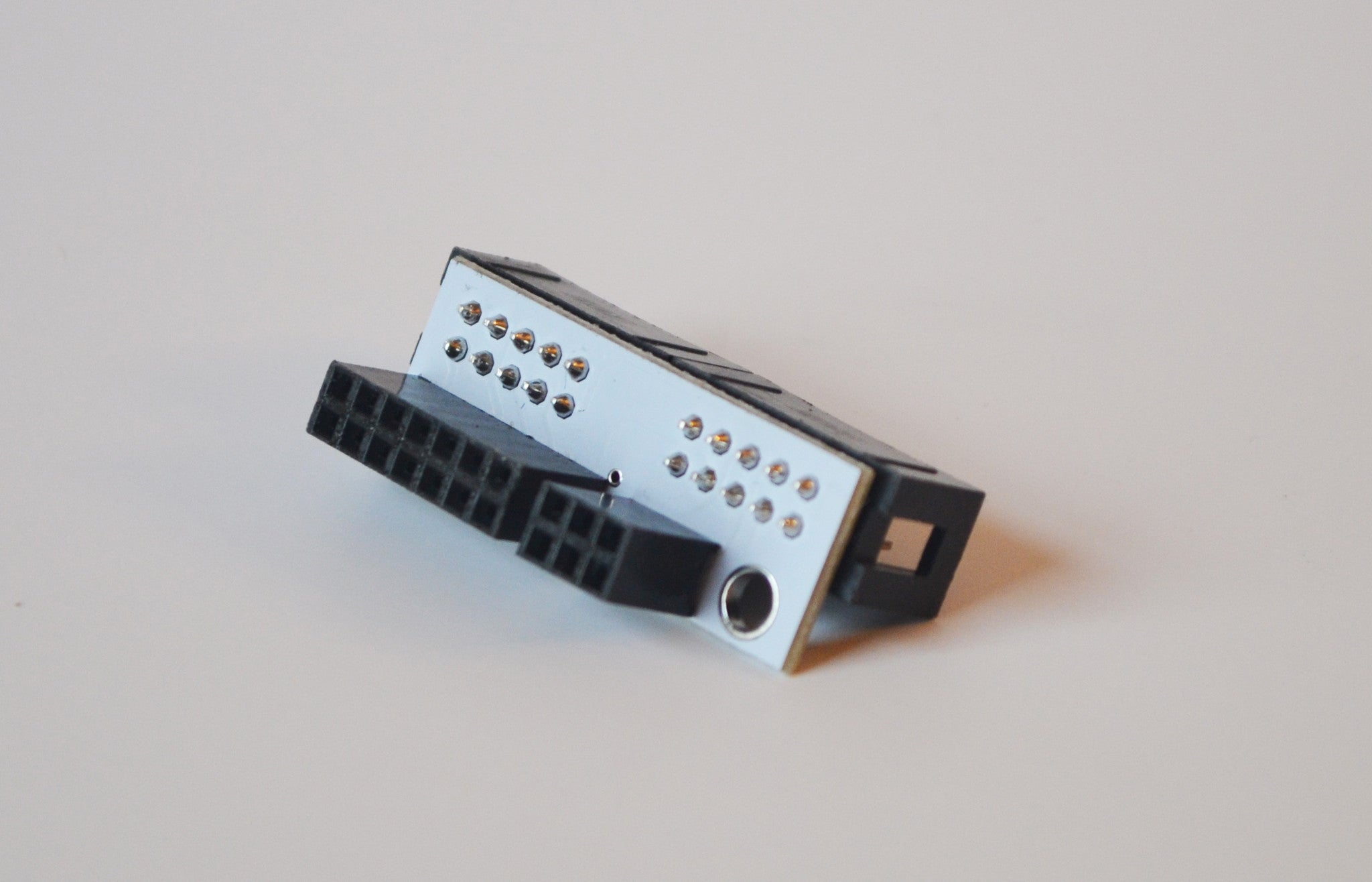

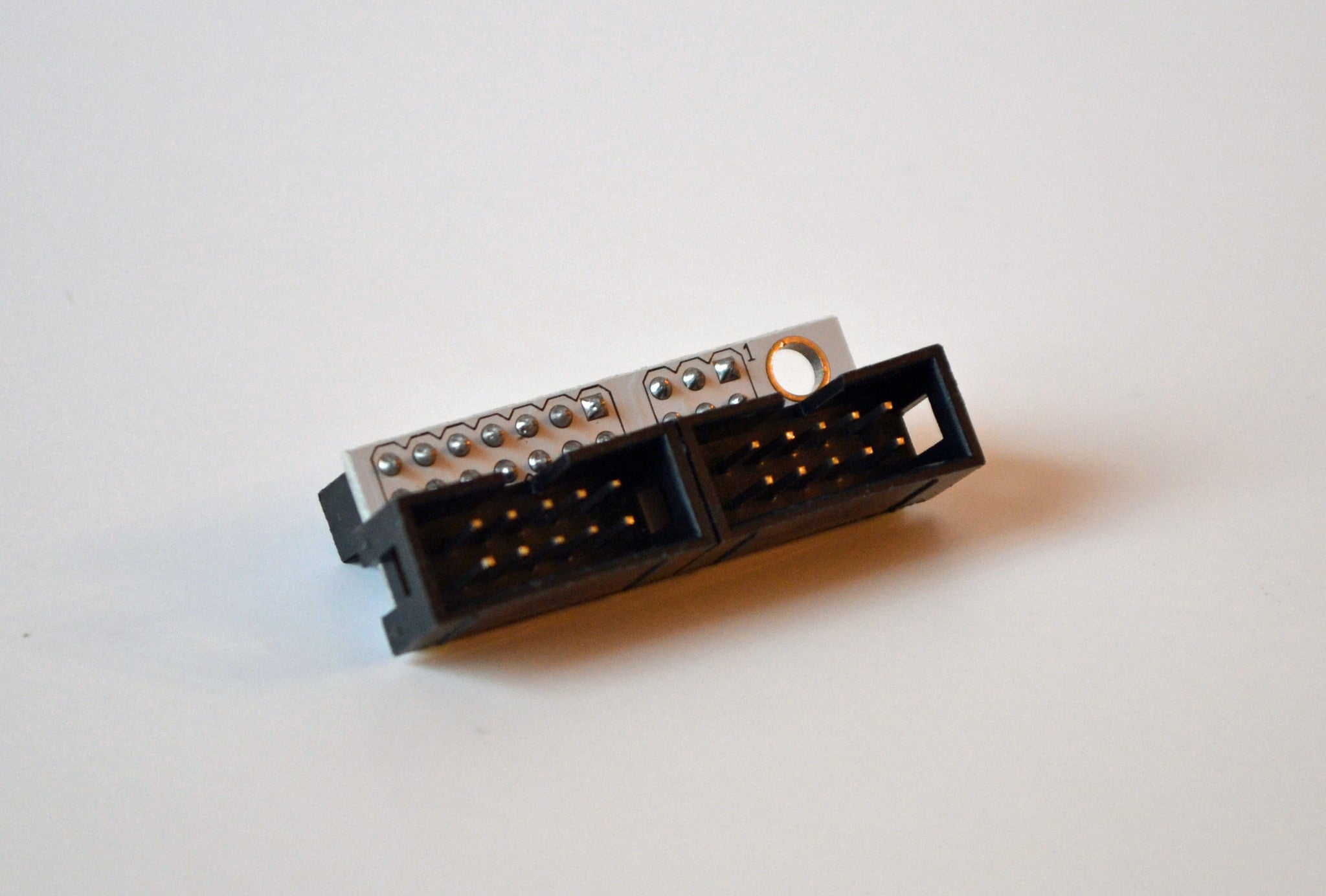

This adapter is used to connect the Full Graphic Smart Controller or other compatible controllers to Sanguinololu board used in many 3D printers. The adapter that comes packaged with most Full Graphic Smart Controllers is designed to connect to RAMPS-based boards and will not work on Sanguinololu based boards. We have not yet confirmed if this adaptor will work with Melzi-style boards.
(Note: Displays and/or adapters from different manufacturers sometimes have the ribbon cable sockets reversed. If using displays and adaptors from different sources you may have to turn both ribbon cable connections 180°. This can be done easily by either filing off the tab on the ribbon cable, or cutting a new slot on the opposite side of the ribbon connector socket.)
