NEMA 23 Reduction / Stand Off Plate

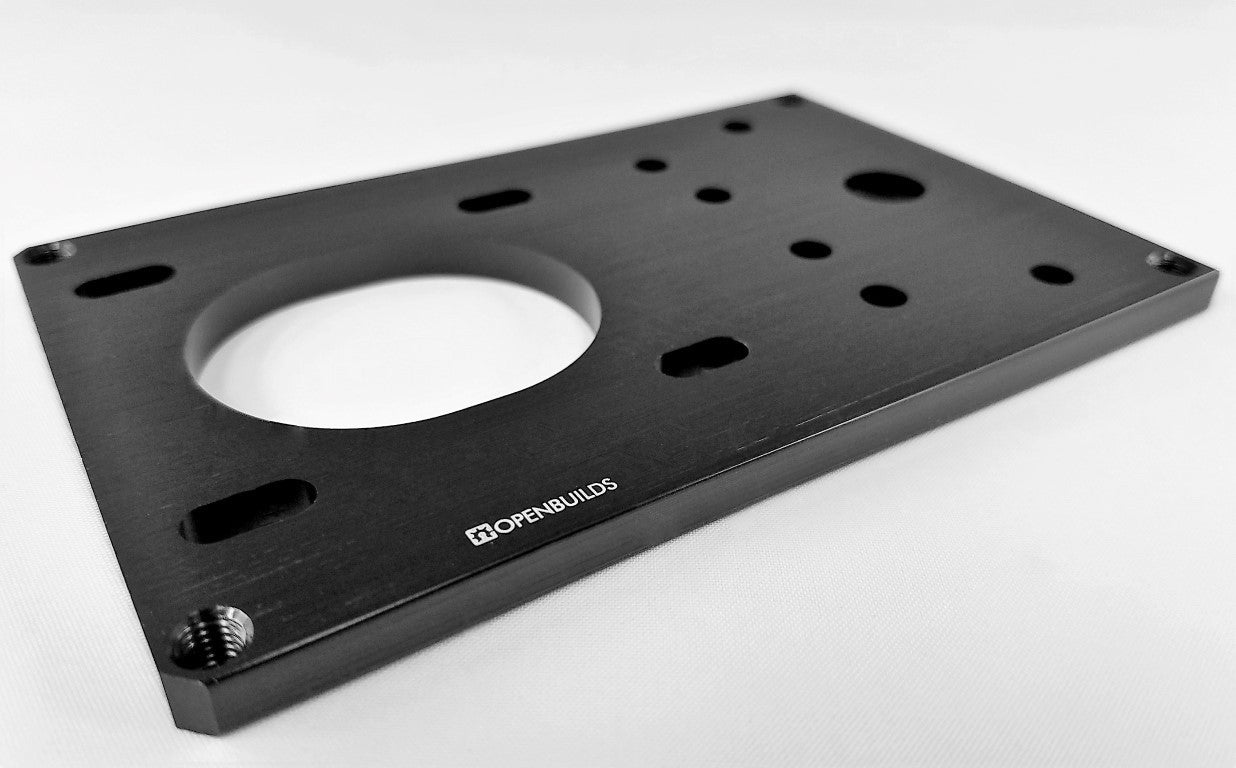

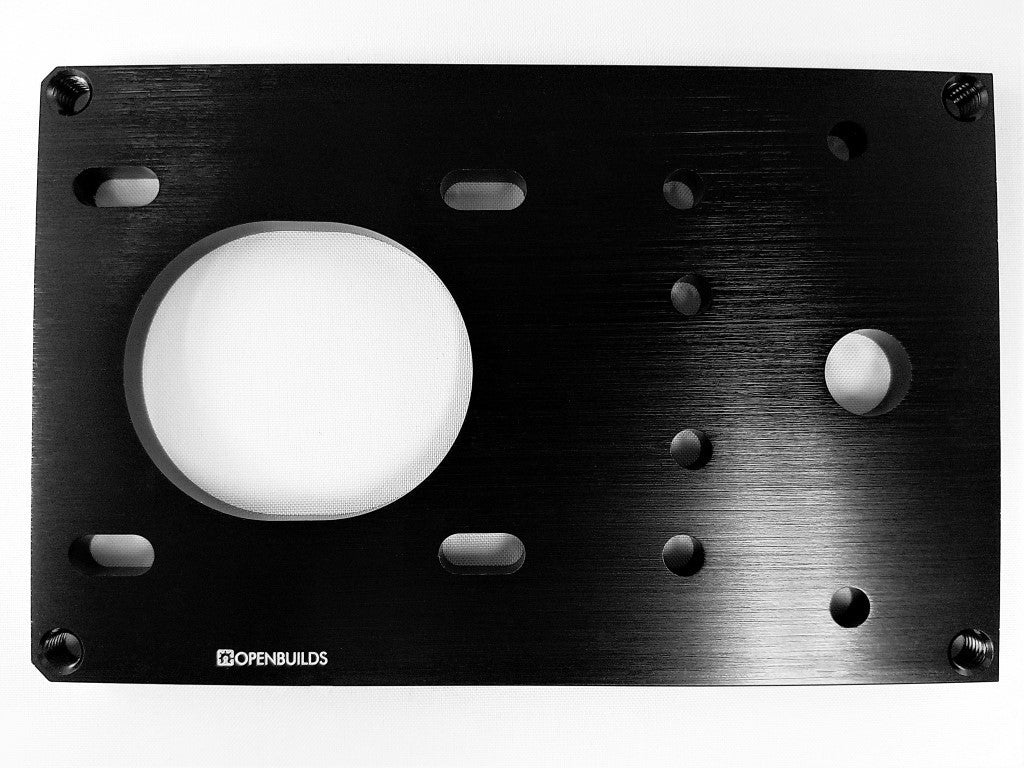

Need to hide the stepper motor or move it out of the way in your design? Want to change the drive ratio between the stepper motor and the lead screw? Use this NEMA 23 Reduction / Stand Off Plate in conjunction with the parts listed below to create a nice, clean hidden assembly.
- Bolts directly to the hole pattern of C-Beam and/or the C-Beam End Mounts.
- Features an adjustable NEMA 23 motor mount to allow for belt tensioning.
- Has M5 threaded holes on each corner that allows for easy stand off mounting.
- Black Anodized
- 6061 T-5 Aluminum
- 125mm x 80mm x 6mm Thick
- Compatible with NEMA 23 series stepper motors

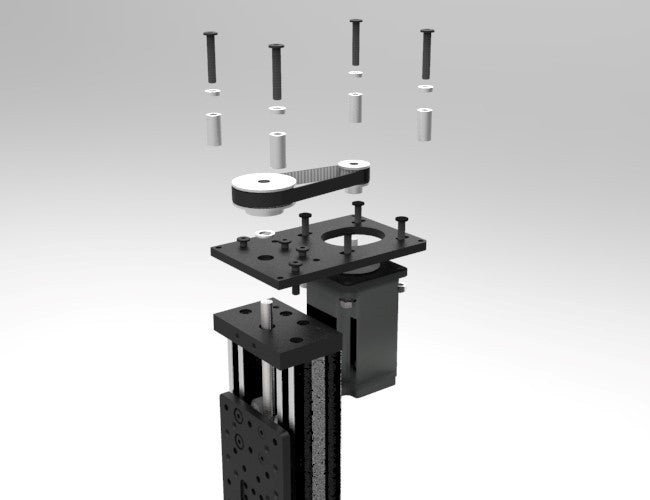

Additional parts used to create a 1-to-1 Ratio Set Up (Sold as a bundle here)
- 4 x M5x25mm Low Profile Screws
- 1 x GT2 (3MM-Pitch) Timing Pulley - 20 Tooth - 9mm Belt - 1/4" Bore
- 1 x NEMA 23 Reduction / Stand Off Plate (This Plate)
- 1 x GT2 (3MM-Pitch) 9mm Timing Belt - Closed Loop
- 1 x GT2 (3MM-Pitch) Timing Pulley - 20 Tooth - 9mm Belt - 8mm Clamp Bore
This mount works great with the custom OpenBuilds NEMA 23 stepper motors or Nema 23 High Torque stepper motors. (sold separately). If you need a Nema 23 sized motor with different specifications for your application we recommend checking out the selection of Nema 23 motors at StepperOnline.com (affiliate link). We have used their motors in several of our personal builds and have been very satisfied with the results.
