NEMA 23 Stepper Motor
This custom OpenBuilds NEMA 23 Stepper Motor is the stepper of choice for larger build requiring more power.
Product Features:
- Plug and Play Xtension connector for easy and fast install
- "D"-shaped motor shaft for a more secure connection to pulleys or couplers.
- Includes 7 feet of wire.
What is Included:
- (1) NEMA 23 Stepper Motor
- (1) 7 Foot lead (2.13m) 4 conductor wire
- (1) Xtension connector ( 4 pin ) male
- (1) Xtension connector ( 4 pin ) female

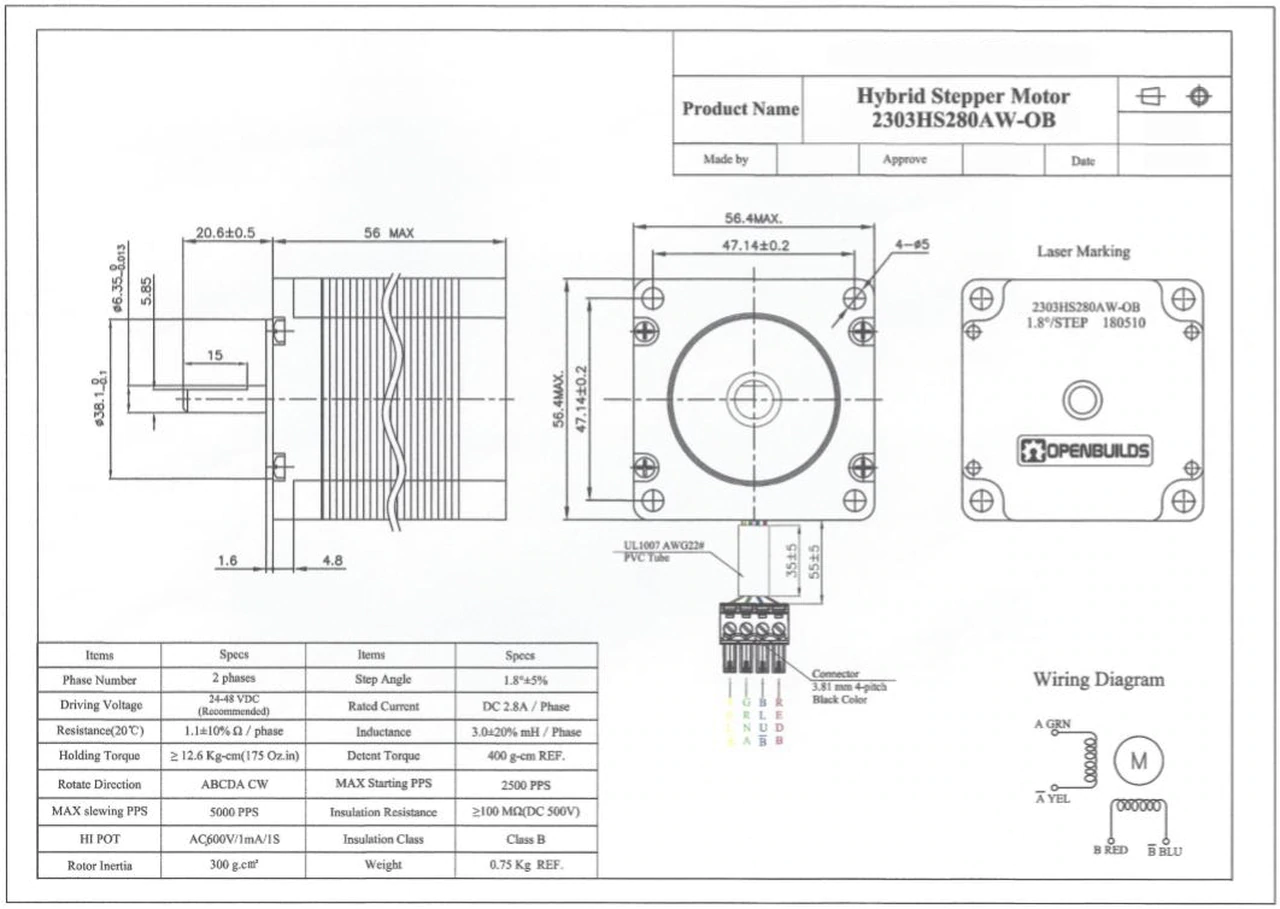

Product Specifications:
- Shaft Size: 1/4"

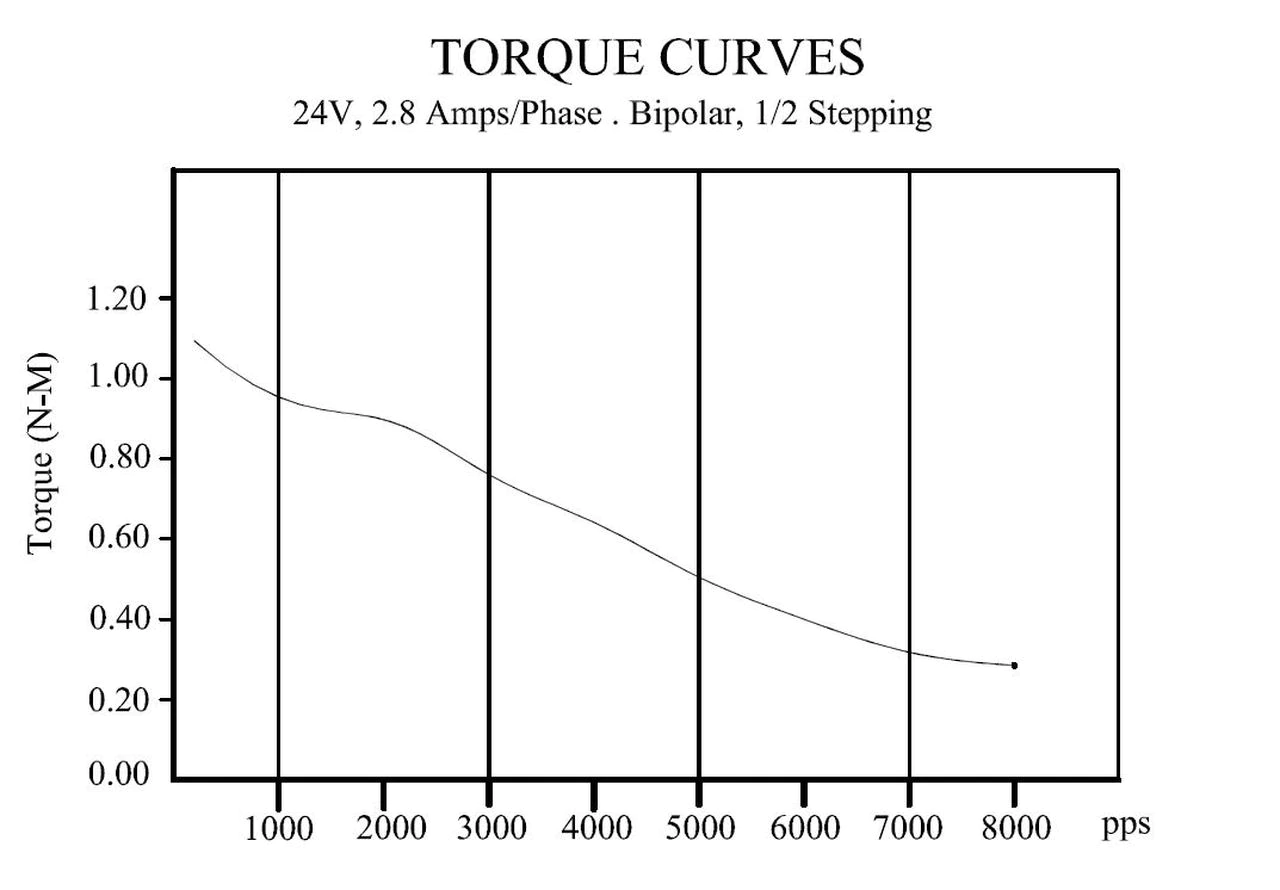

- Torque: 175 oz*in
- Step Angle: 1.8
- M5 mounting holes
- Peak Current is 2.8A/phase
- 4 Wire Bi-Polar
- 12-48VDC (Recommended)
- RoHS Compliant
These motors can be used with the following OpenBuilds mounting solutions:
- C-Beam™ End Mount
- Motor Mount Plate for Nema 23 Stepper Motor
- NEMA 23 Reduction / Stand Off Plate
- NEMA 23 Reduction / Stand Off Plate Set
- Threaded Rod Plate™ for Nema 23 Stepper Motor
