NEMA 23 Stepper Motor - High Torque Series

  • $ 43.99
    Unit price per
Shipping calculated at checkout.


The custom OpenBuilds High Torque NEMA 23 Stepper Motors provide even more holding power and strength to take any build to the next level.



 Product Features:

  • Plug and Play Xtension connector for easy and fast install.
  • "D"-shaped motor shaft for a more secure connection to pulleys or couplers.
  • Includes 7 feet of wire.



What is Included:

  • (1) NEMA 23 HTS Stepper Motor.
  • (1) 7 Foot lead (2.13m) 4 conductor wire.
  • (1) Xtension connector ( 4 pin ) male.
  • (1) Xtension connector ( 4 pin ) female.



Product Specifications:

  • Shaft Size: 1/4".

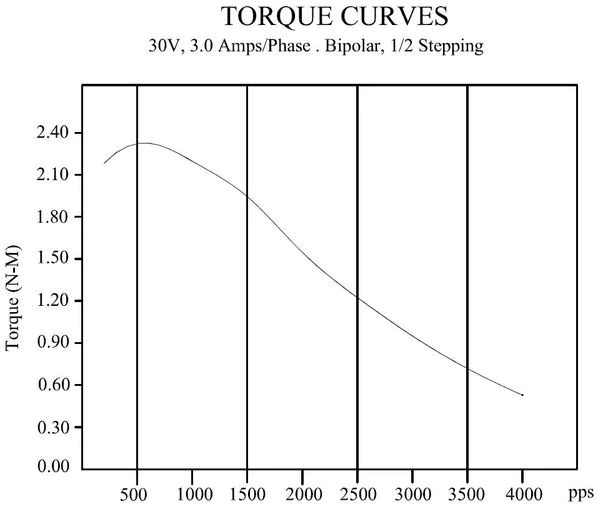

  • Torque: 345 oz*in.
  • Step Angle: 1.8°.
  • M5 mounting holes.
  • Peak Current is 3A/phase (2 Phase).
  • 4 Wire Bi-Polar.
  • 24-48VDC (Recommended).
  • RoHS Compliant.



These motors can be used with the following OpenBuilds mounting solutions:
