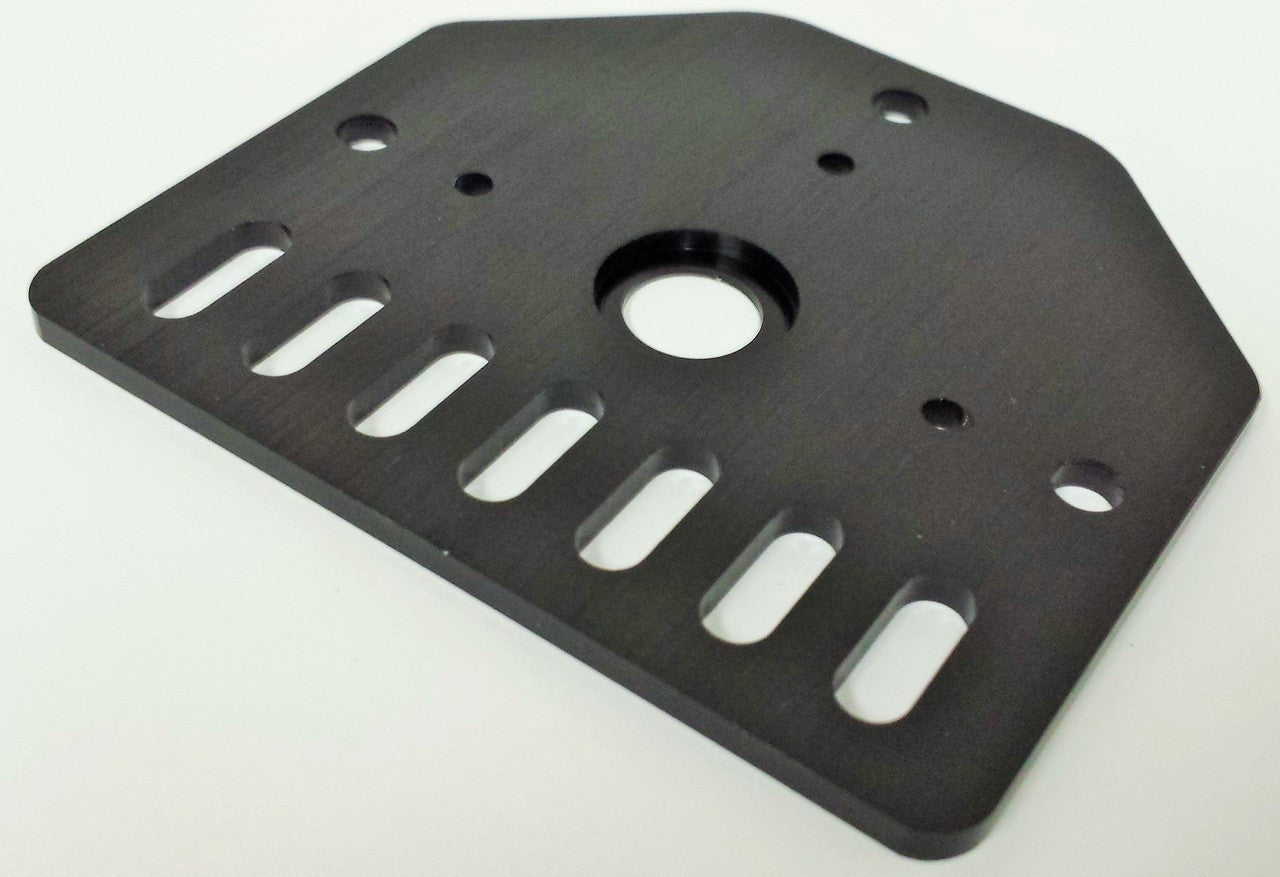

Threaded Rod Plate™ for Nema 23 Stepper Motor

  • $ 8.99
    Unit price per
Shipping calculated at checkout.

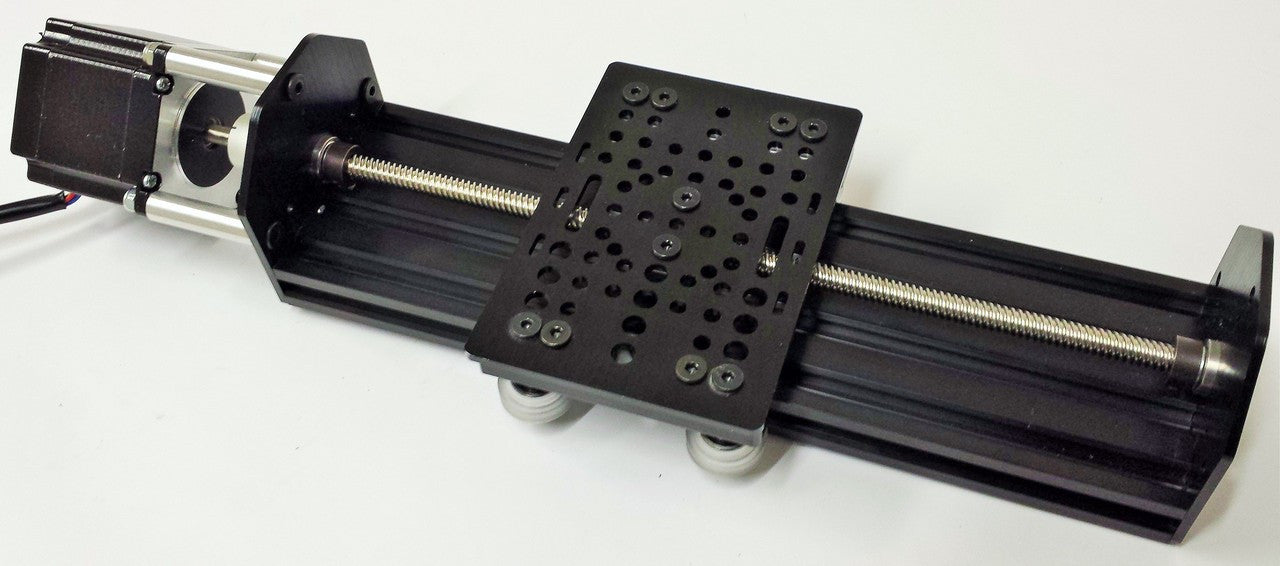

This plate can be used with both V-Slot and OpenRail. This is the plate you want when you need the power of Nema 23 stepper motors coupled with lead/acme screws for your projects. The design of this plate allows for many possible mounting configurations.

This mount works great with the custom OpenBuilds NEMA 23 stepper motors or Nema 23 High Torque stepper motors. (sold separately). If you need a Nema 23 sized motor with different specifications for your application we recommend checking out the selection of Nema 23 motors at (affiliate link). We have used their motors in several of our personal builds and have been very satisfied with the results.


  • V-Slot and OpenRail compatible.
  • Recessed bearing opening for lead screw mounting.

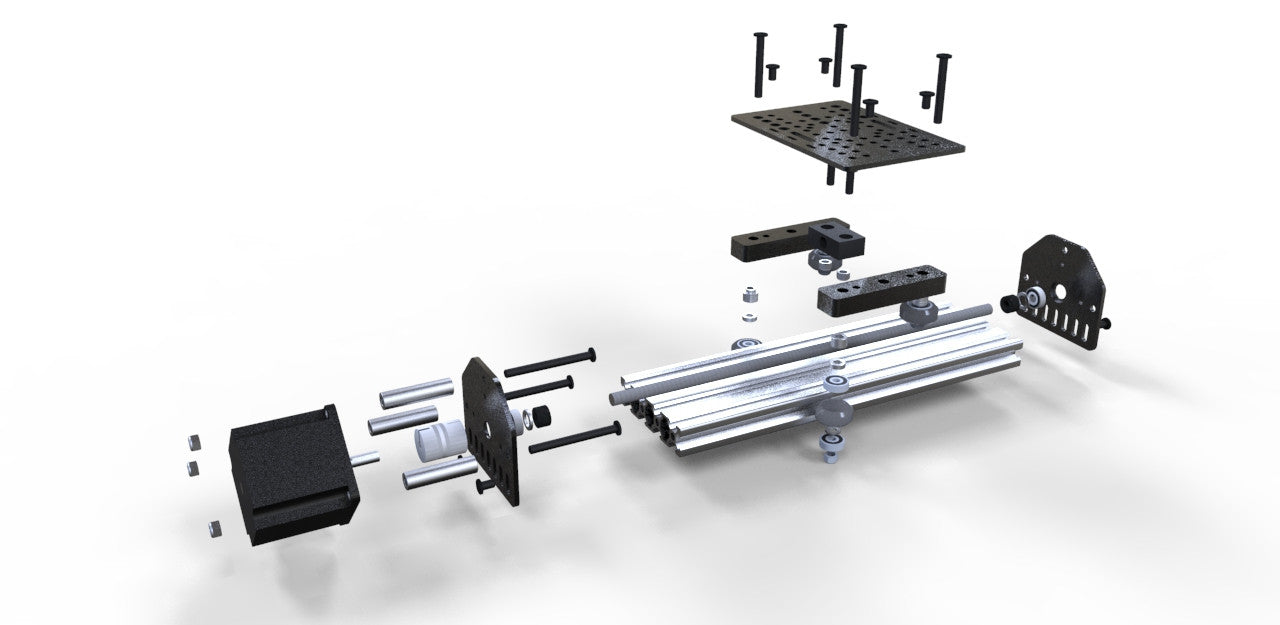

  • Several slotted mounting screw holes for fine adjustment and configurability.
  • (Also includes mounting holes compatible with Nema 17 sized motors)


  • (1) Threaded Rod Plate – NEMA 23


  • Size:  80 x 72mm
  • Thickness:  3mm
  • Material:  6063 - T6 Aluminum
  • Finish:  Brushed and Anodized
  • Color:  Black
