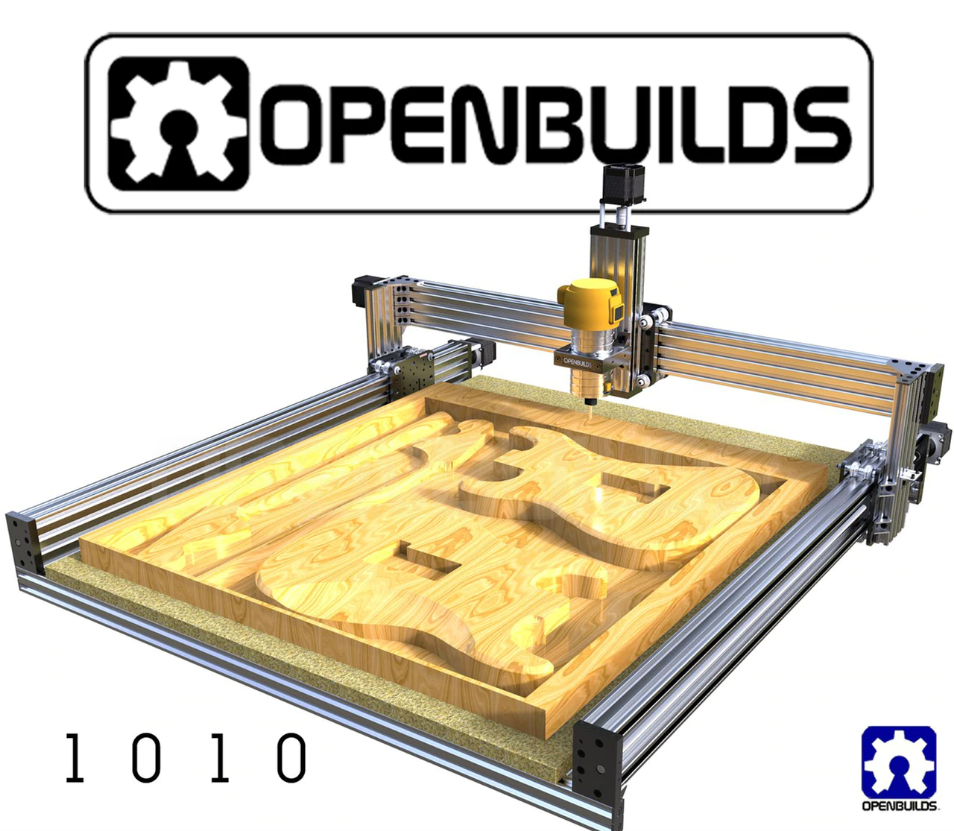

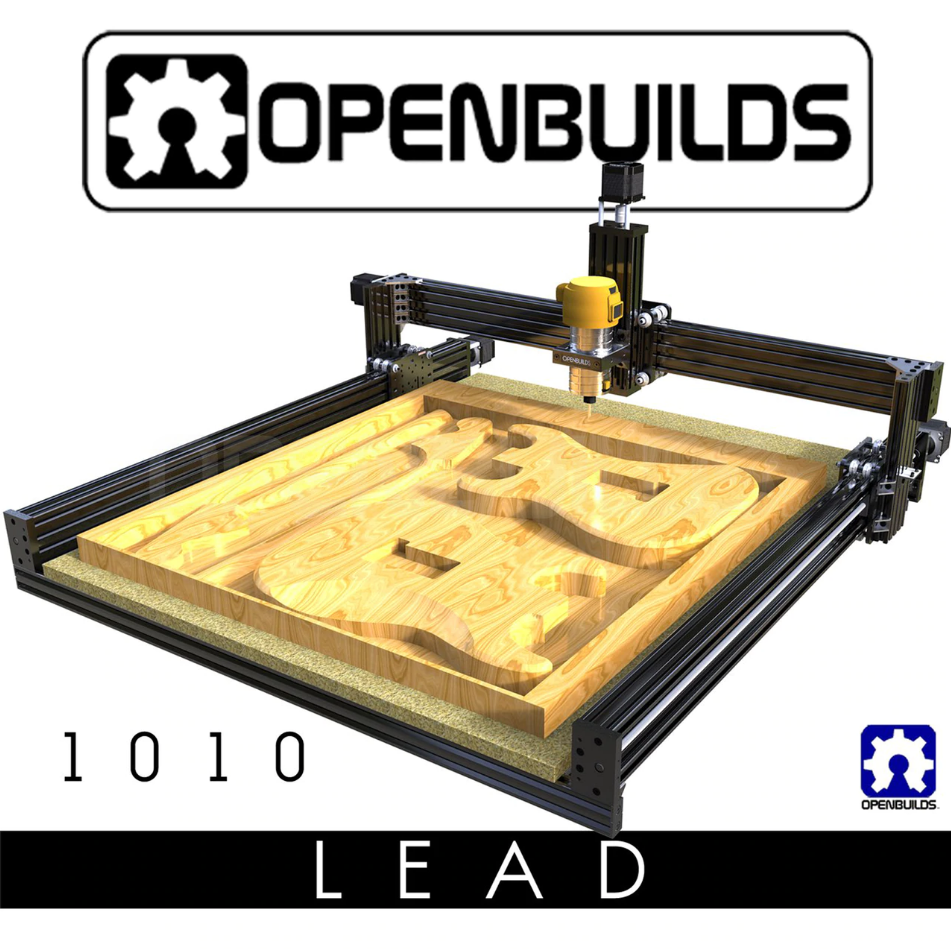

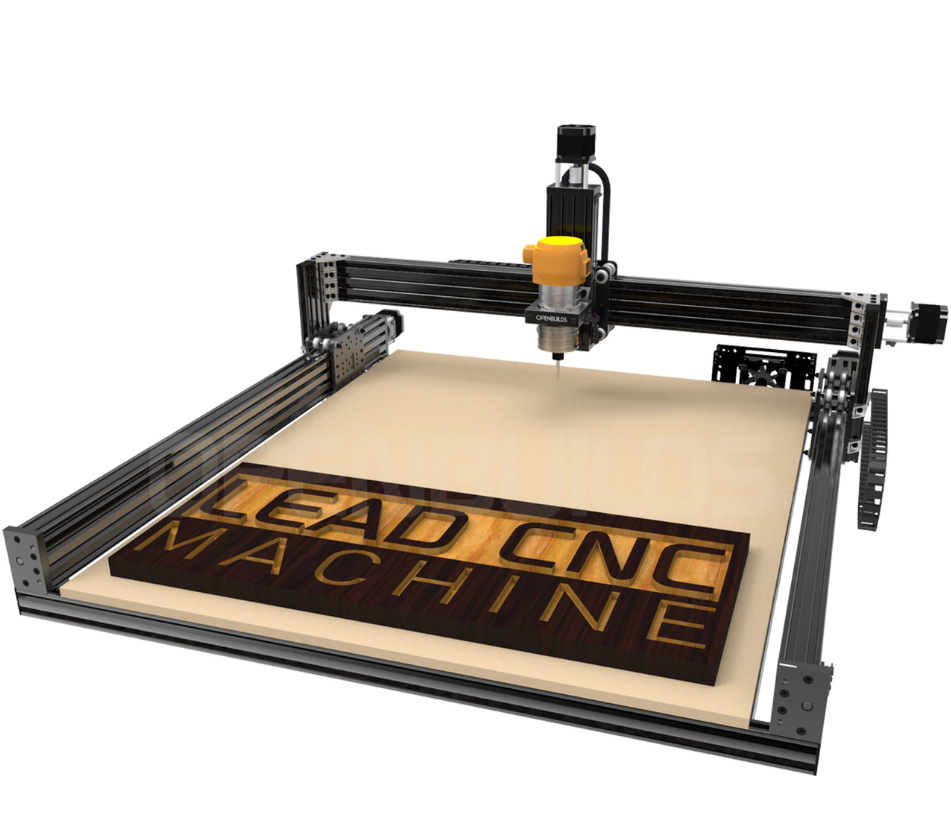

OpenBuilds LEAD CNC 1010 (40" x 40") FULLY LOADED!

  • $ 2,355.99
    Unit price per
Shipping calculated at checkout.

***Current lead time for machine bundle orders to ship is 2-3 weeks ***

Make your dreams a reality with the LEAD1010 3D CNC Router! (assembly required)

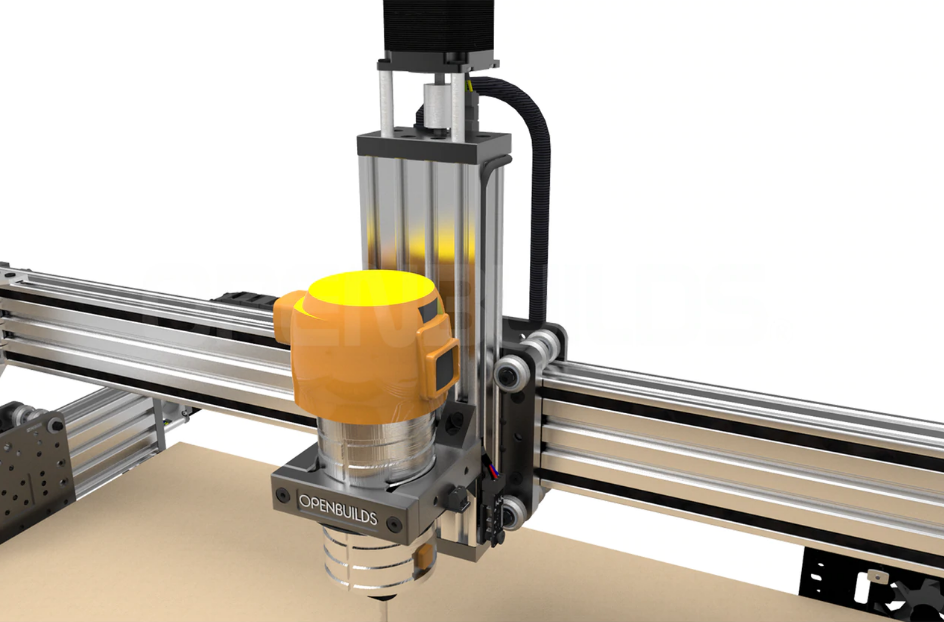

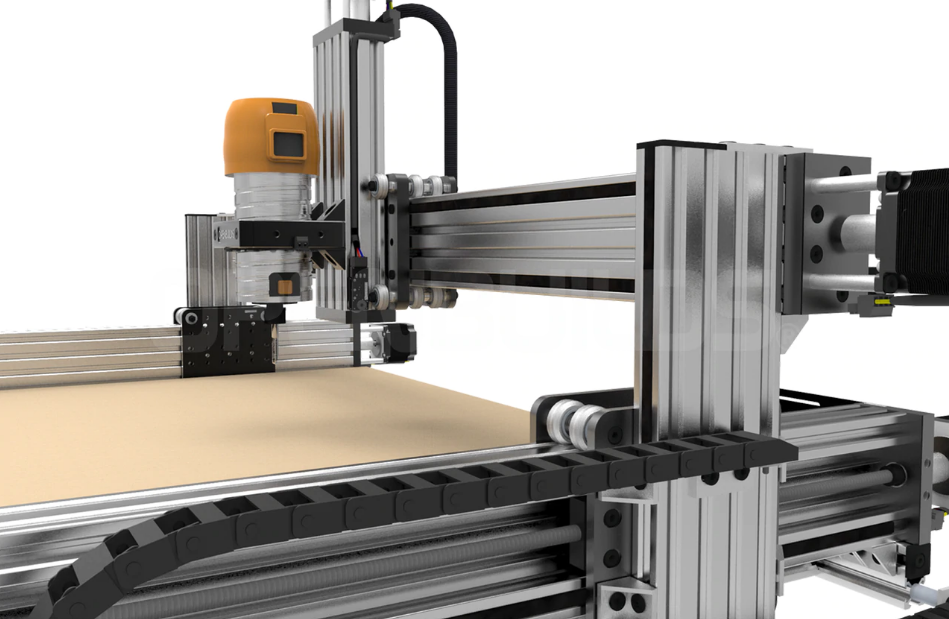

The LEAD CNC 1010 a super strong, accurate and easy to assemble CNC machine. It gains its strength by incorporating a combination of C-Beam Linear Rails with dual XLarge C-Beam Plates and full size Xtreme Solid V-wheels. Like the Workbee and Sphinx designs, the OpenBuilds LEAD CNC design keeps the lead screws directed towards the outsides of the machine to reduce the likelihood of shavings contaminating them. It also uses only standard OpenBuilds parts and requires no custom cut gantry plates making expanding the machine easy and re-purposing any replaced parts more likely. It’s a great machine and we're sure you will love it!

Create beautiful intricate 3D carvings, inlays, amazing works of art and so much more. Start a business, make unique gifts for your friends & family and impress even yourself by becoming a 21st century digital carpenter. The time is now!

This kit includes the OpenBuilds LEAD1010 parts bundle, electronics, and all their accessories. All you will need to purchase are the appropriate cutting bits and a spoil board (most people use MDF readily available at most local hardware stores) If you want to configure your own LEAD1010 bundle with different options please visit this page.


 Travel (Work Area) X Axis    29" (730mm)
Y Axis    32" (810mm)
Z Axis     4" (~100mm)
Overall Machine Base Footprint 40" x 40" (1000mm x 1000mm)
Workable Material Height

2" ( ~47mm ). Based on a 1/2" spoiler board stack

Can be upgraded to approximately 8"(`200mm) with the optional OpenBuilds High Z Upgrade kit.

Drive System: Lead Screw Driven
Machine Accuracy 0.001"~0.003" (0.05mm~0.10mm)
Compatible materials for cutting/milling Aluminum, Softwoods/Hardwoods, Acrylic/Plexi-glass, Delrin, HDPE, Foam, and more

    Bundle Includes (depending on options selected):


    Other Items Needed (Sold Separately):

    • (1) Spoiler Board H 1/2" (12mm),  W 32" (820mm), L 40" (1020mm). This can be cut from a single 4'x8' panel of MDF or other suitable material available at your local hardware store.
    • Appropriate end mills/router bits
    • Appropriate software (Openbuilds has FREE control and basic CAM software options available here).

    Assembly Instructions and Videos:

    OpenBuilds Part CAD Models and Drawings

    Available Upgrades:

    High Z Upgrade for OpenBuilds LEAD 1010 CNC

    Extend your Milling / 3D Carving depths up to 8” with the LEAD 1010 High Z upgrade!

    J Tech Photonics All-in-One Laser and Mounting Kit Bundle for OpenBuilds CNC Machines

    Attach a laser to your LEAD CNC and take your projects to the next level! (Sold separately through J Tech Photonics)
