OpenBuilds LEAD CNC 1010 (40" x 40")

  • $ 1,665.97
    Unit price per
  • Save $ 0
Shipping calculated at checkout.


***Current lead time for machine bundle orders to ship is 2-3 weeks ***

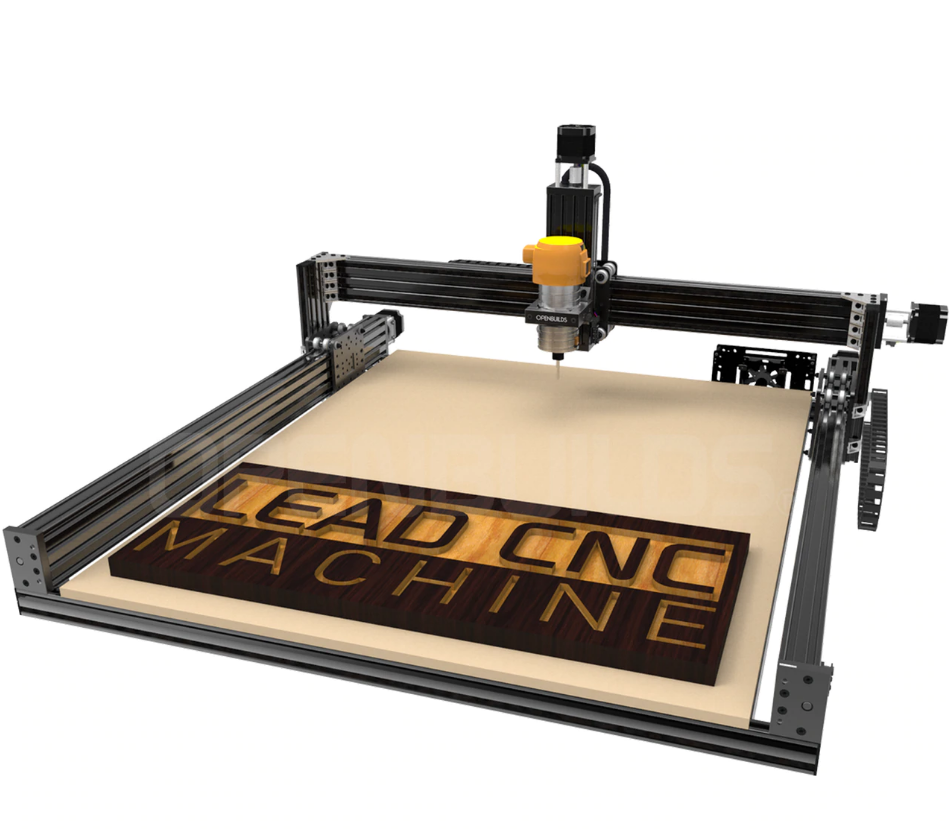

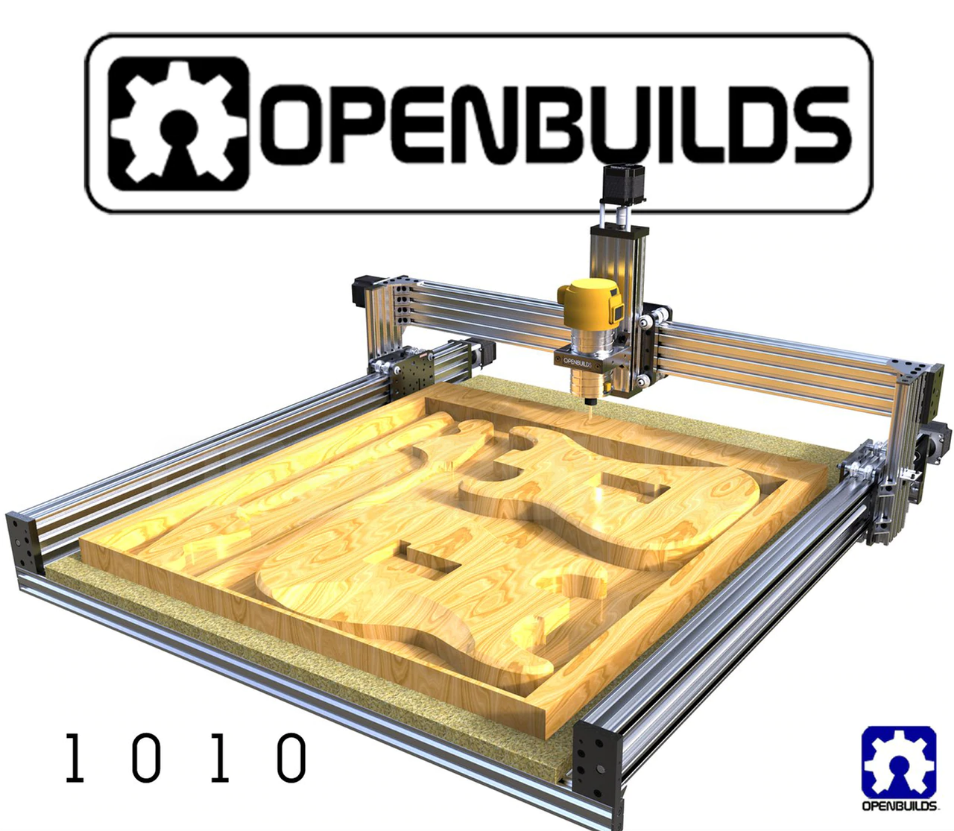

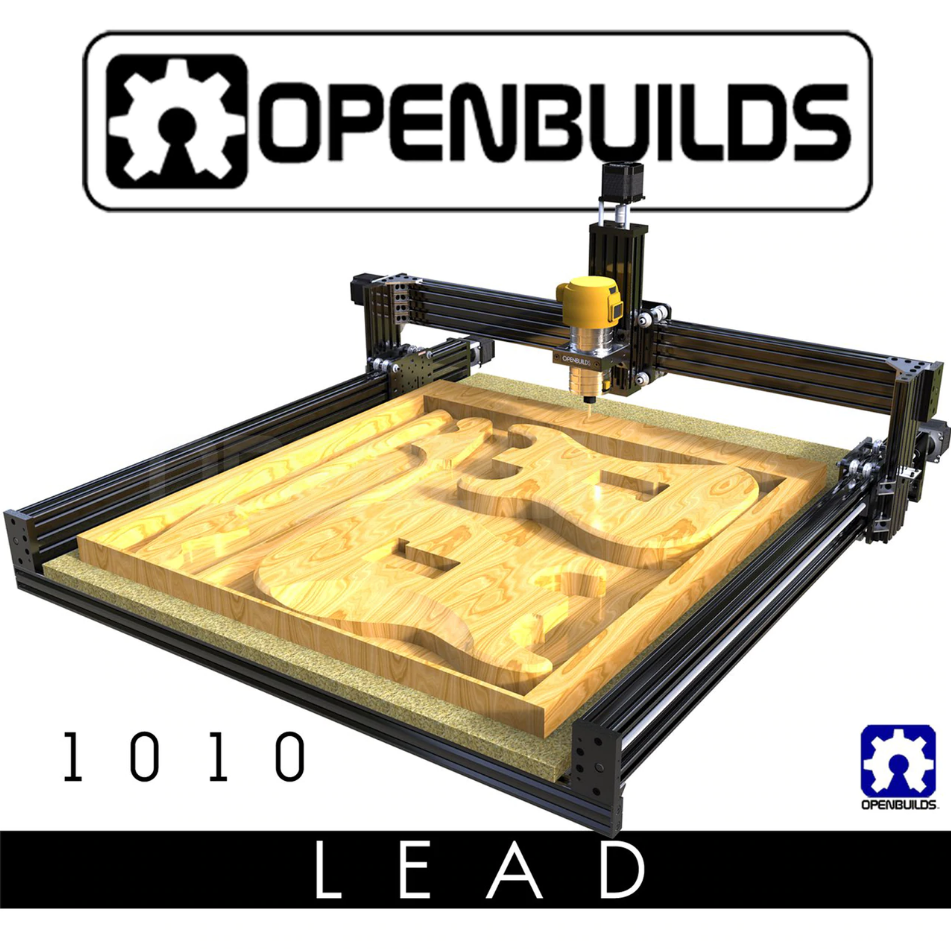

Make your dreams a reality with the LEAD1010 3D CNC Router! (assembly required)

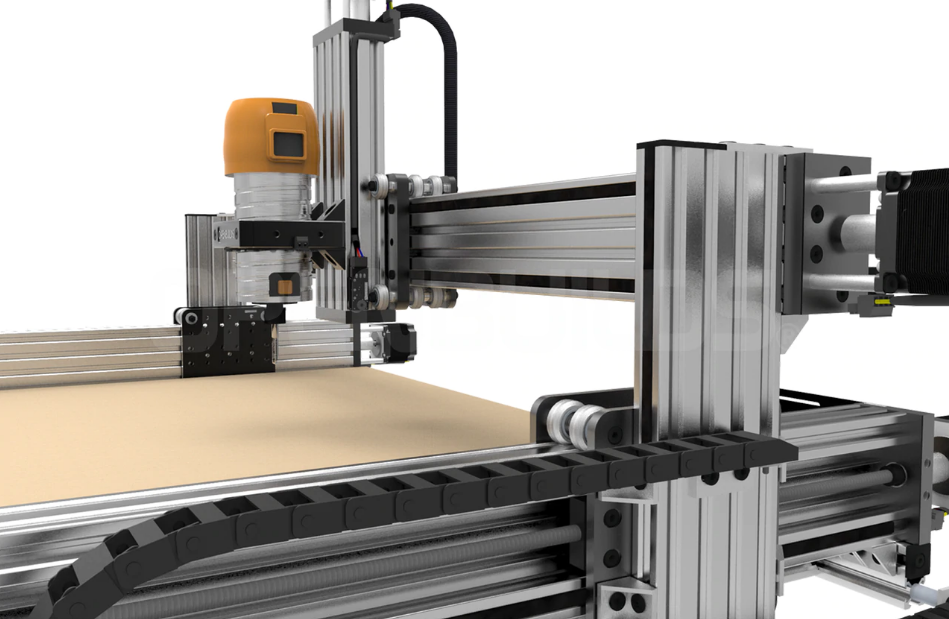

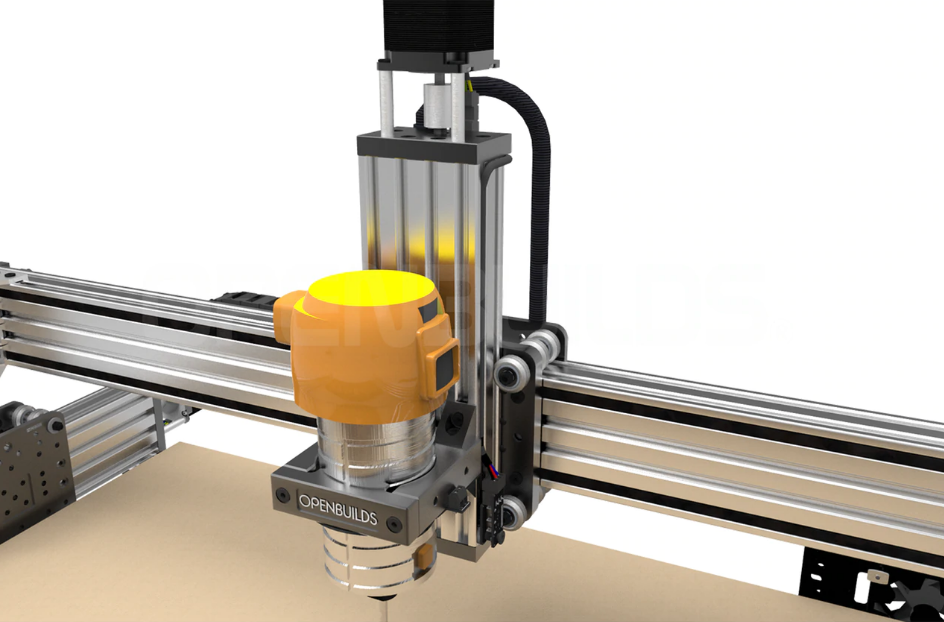

The LEAD CNC 1010 a super strong, accurate and easy to assemble CNC machine. It gains its strength by incorporating a combination of C-Beam Linear Rails with dual XLarge C-Beam Plates and full size Xtreme Solid V-wheels. Like the Workbee and Sphinx designs, the OpenBuilds LEAD CNC design keeps the lead screws directed towards the outsides of the machine to reduce the likelihood of shavings contaminating them. It also uses only standard OpenBuilds parts and requires no custom cut gantry plates making expanding the machine easy and re-purposing any replaced parts more likely. It’s a great machine and we're sure you will love it!

Create beautiful intricate 3D carvings, inlays, amazing works of art and so much more. Start a business, make unique gifts for your friends & family and impress even yourself by becoming a 21st century digital carpenter. The time is now!

Specifications:

 Travel (Work Area) X Axis    29" (730mm)
Y Axis    32" (810mm)
Z Axis     4" (~100mm)
Overall Machine Base Footprint 40" x 40" (1000mm x 1000mm)
Workable Material Height

2" ( ~47mm ). Based on a 1/2" spoiler board stack

Can be upgraded to approximately 8"(`200mm) with the optional OpenBuilds High Z Upgrade kit.

Drive System: Lead Screw Driven
Machine Accuracy 0.001"~0.003" (0.05mm~0.10mm)
Compatible materials for cutting/milling Aluminum, Softwoods/Hardwoods, Acrylic/Plexi-glass, Delrin, HDPE, Foam, and more


    Bundle Includes (depending on options selected):

    • Complete parts list
    • We have our OpenBuilds CNC Bundles shipped to our customers directly from OpenBuilds' warehouse so that our customers always receive the most up to date versions of the kits and components!

    Options Details:

    Other Items Needed (Sold Separately):

    • (1) Spoiler Board H 1/2" (12mm),  W 32" (820mm), L 40" (1020mm)
    • (1) Suitable spindle/router. We recommend the new Router11 router. The Dewalt DWP611 router is also a very popular choice.
    • Assorted end mills/router bits
    • Appropriate control software (Openbuilds has free control options available here).

    Assembly Instructions and Videos:

    OpenBuilds Part CAD Models and Drawings

    Available Upgrades:

    High Z Upgrade for OpenBuilds LEAD 1010 CNC

    Extend your Milling / 3D Carving depths up to 8” with the LEAD 1010 High Z upgrade!

    J Tech Photonics All-in-One Laser and Mounting Kit Bundle for OpenBuilds CNC Machines

    Attach a laser to your LEAD CNC and take your projects to the next level! (Sold separately through J Tech Photonics)


    OpenBuilds XYZ Touch Probe Plus

    Add the OpenBuilds XYZ Touch probe to easily and accurately align your CNC to the workpiece before cutting!

    OpenBuilds INTERFACE CNC Touch Controller

    Run jobs from a stand alone, plug & play hand-held pendant!
